Description

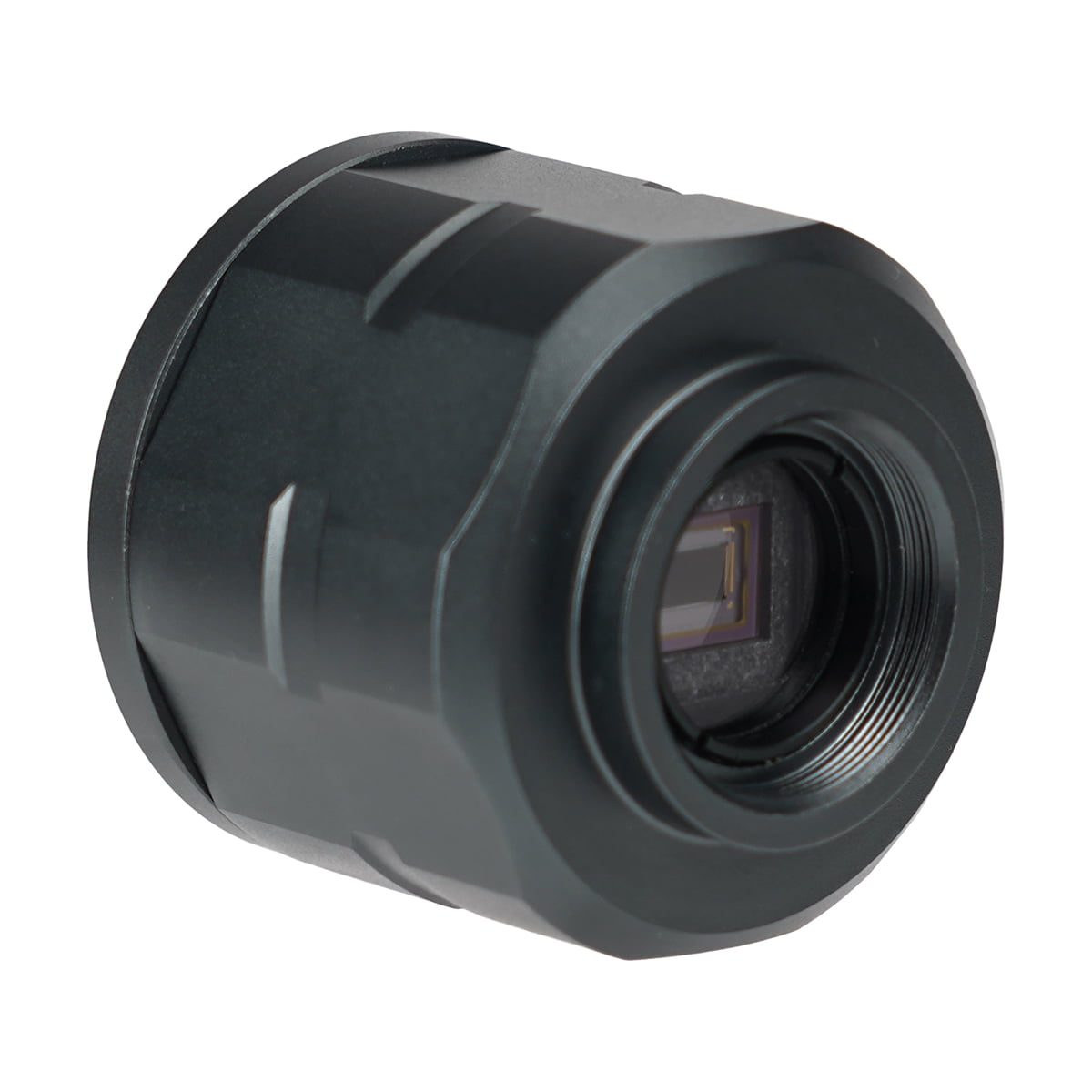

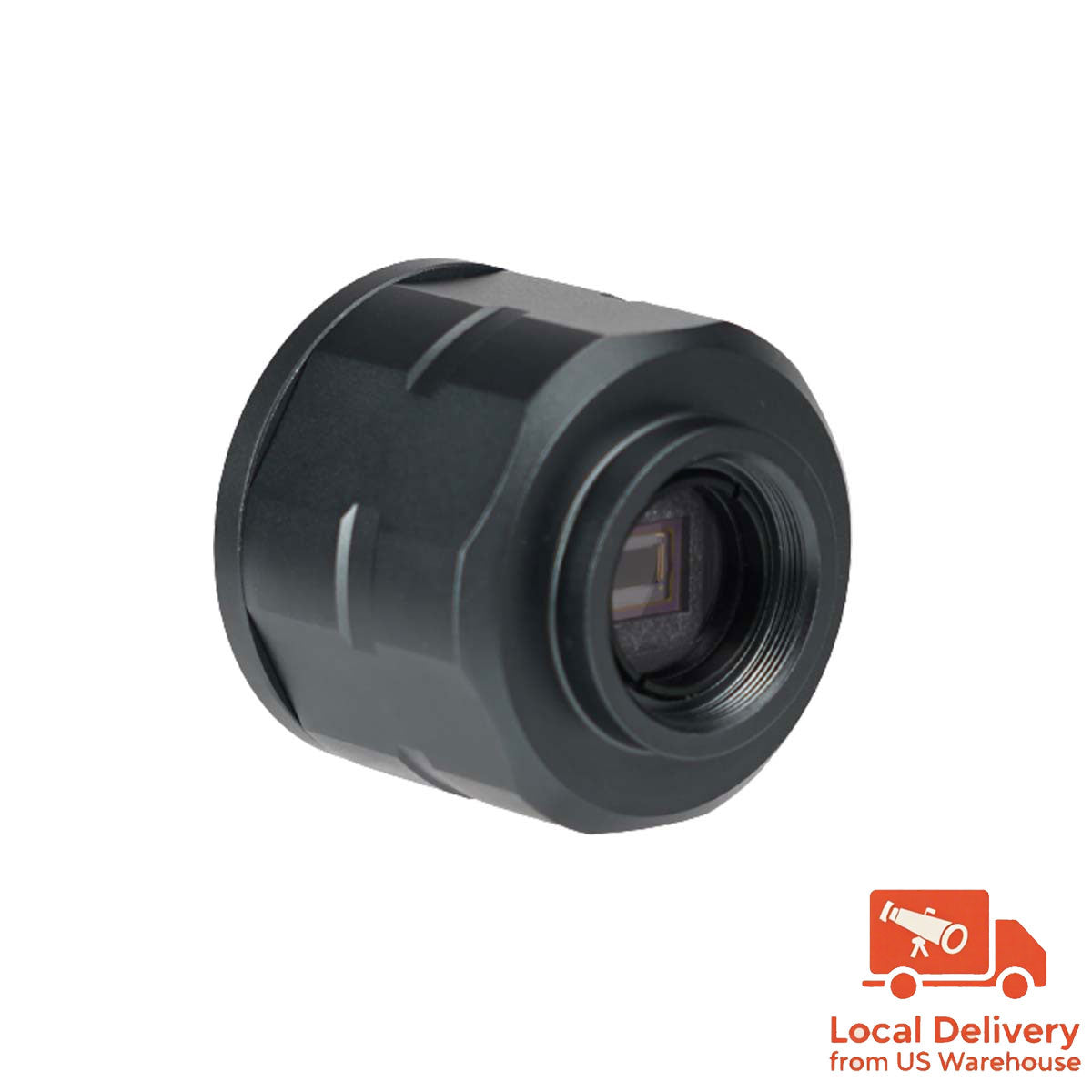

SV305C Color Planetary Camera IMX662 for Astrophotography and EAA
SV305C telescope camera adopts the latest IMX662 1/2.8” back-illuminated sensor. The camera has ultra-high sensitivity and ultra-low readout noise. It has better performance in planetary photography and lunar surface photography, and is very suitable for EAA.

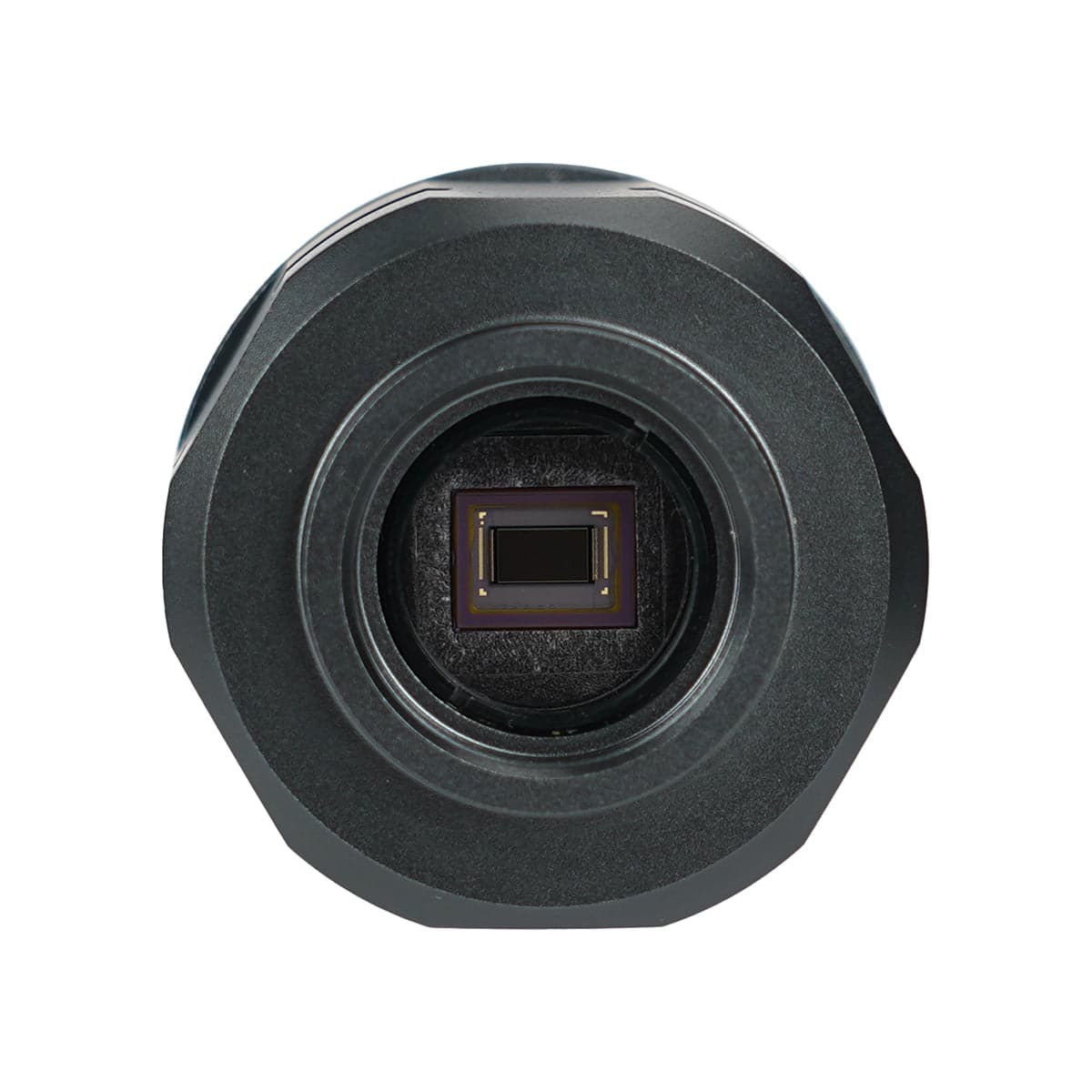

IMX662 CMOS sensor
The SV305C planetary camera uses the IMX662 sensor. Compared with the previous generation sensor IMX462, the sensor has three times the full well charge, which can effectively avoid overexposure and ensure long exposure. The IMX662 sensor has the characteristics of low readout noise, no glow, and greatly improved NIR, especially in the red spectral band, which has a higher sensitivity than IMX462.

QE

Dynamic Range & Full Well
Using HCG noise reduction technology, when the gain is increased, the HCG mode will be automatically turned on, which can greatly reduce the readout noise, and at the same time retain the high dynamic range of low gain. When the gain value of SV305C telescope camera is 190, HCG will be turned on automatically.

Read Noise & Gain

Dimensions Display

ROI Function & BIN

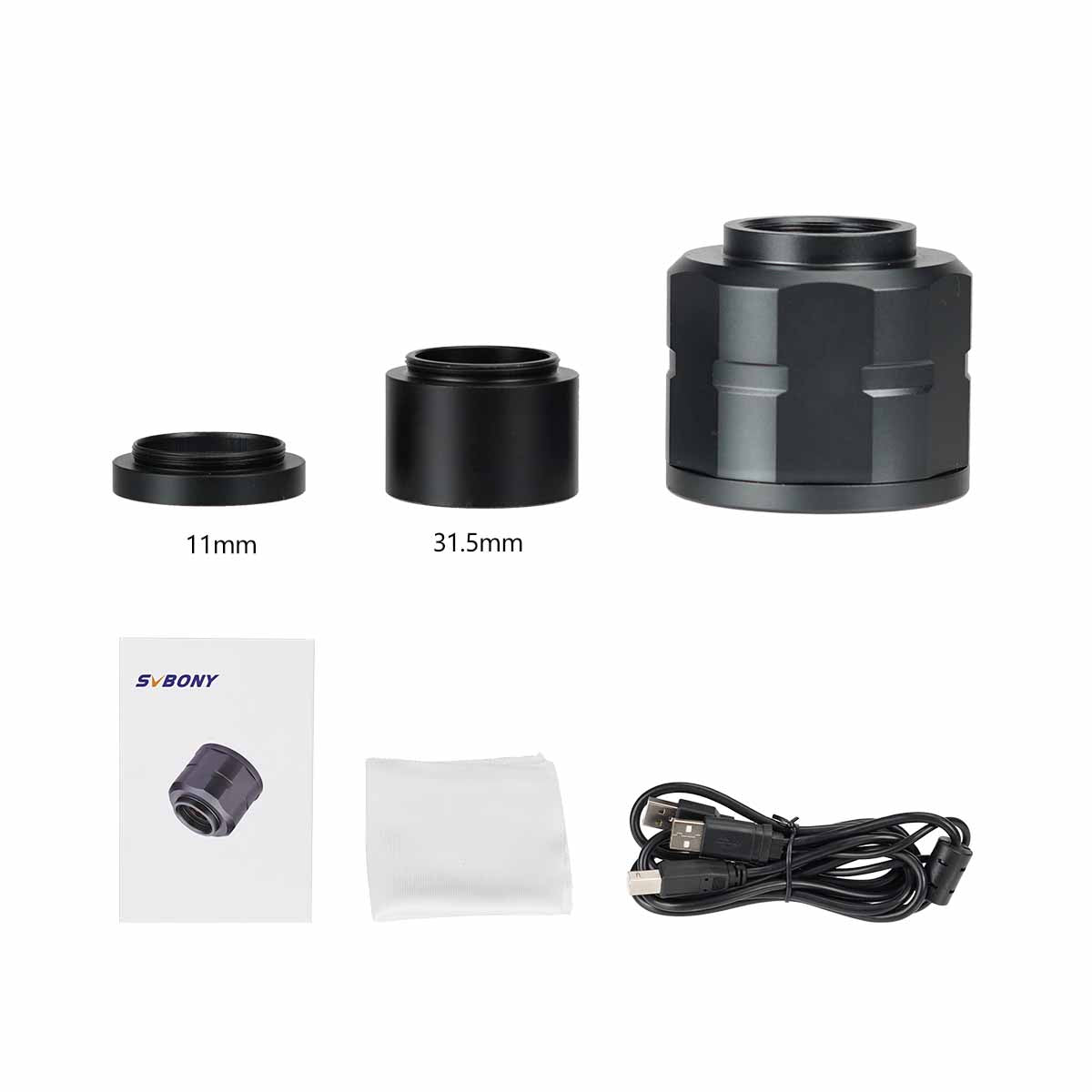

1.25 Inch CS Interface
SV305C planetary camera can use a 1.25-inch universal astronomical interface, the front of the camera is a CS interface, and it is also equipped with a CS-C adapter ring, which can be used with C-mount lenses and CS-mount lenses for shooting.

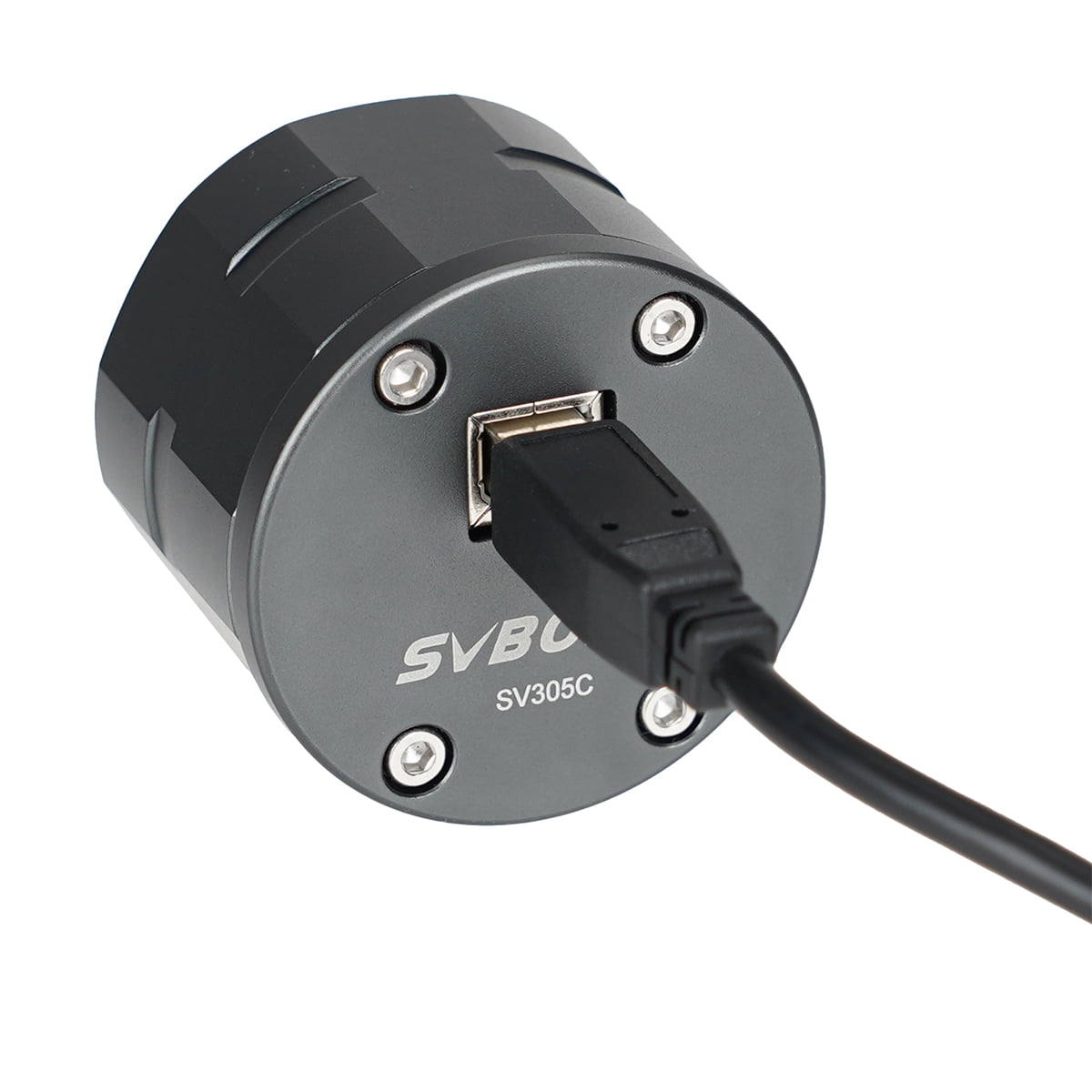

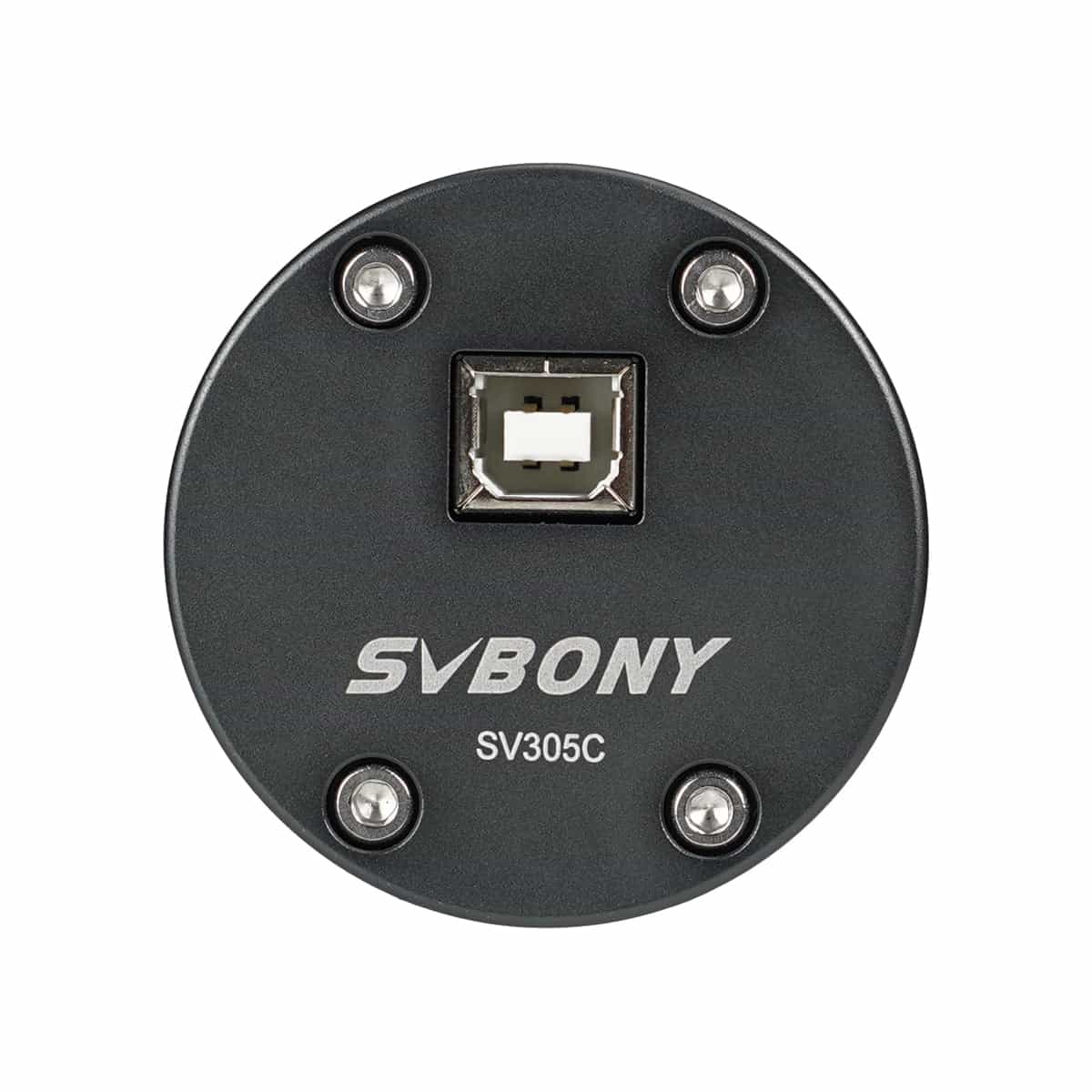

USB 2.0 Interface
SV305C color palnetary camera is designed with USB2.0 interface, which can meet the basic needs of users, suitable for entry-level planetary photography.

128MB DDRII Buffer
SV305C planetary camera has a built-in 128MB DDRIII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, so that the frame won’t be lost or corrupted.

UV/IR CUT Protective Glass
The built-in protective glass of the fuselage is UV/IR CUT, which can reach a high transmittance of more than 96% in the visible light range of 400-700nm. When shooting celestial images in the visible light range, a well-balanced color can be obtained. It effectively blocks ultraviolet and infrared light, ensuring clear images and accurate colors. At the same time, it protects the camera sensor, reducing unnecessary light pollution and image distortion.

For Astrophotography & EAA
One-key quick setting: We have set planetary high-speed mode and deep space long exposure mode in the sharpcap software, users can choose according to their actual shooting needs, and realize one-key quick setting. After setting, they can adjust the best parameters suitable for them. It can be saved for convenient one-key setting next time. The unique one-button operation mode makes planet shooting easier.

| SKU | Model | CMOS Sensor | Classification | Pixel Size | Resolution | USB Type |
| F9198A | SV305 | IMX290 | Color | 2.9μm x 2.9μm | 2MP | USB 2.0 |
| F9198B | SV305 Pro | IMX290 | Color | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198C | SV305Pro AR | IMX290 | Color | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198D | SV305M Pro | IMX290 | Monochrome | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198L | SV305C | IMX662 | Color | 2.9μm x 2.9μm | 2.1MP | USB2.0  |
| F9198G | SV905C | IMX225 | Color | 3.75μm x 3.75μm | 1.2MP | USB2.0 |
| F9198H | SV505C | IMX464 | Color | 2.9μm x 2.9μm | 4.2MP | USB3.0 |
| F9198J | SV705C | IMX585 | Color | 2.9μm x 2.9μm | 8.3MP | USB3.0 |
| F9384A | SC311 | IMX662 | Color | 2.9μm X 2.9μm | 2.1MP | Type-C |
Features
- SV305C telescope camera adopts the latest IMX662 1/2.8” back-illuminated sensor. Ultra-high sensitivity and ultra-low readout noise, it has better performance in planetary photography and lunar surface photography, and is very suitable for EAA;
 - One-key quick setting: high-speed mode and deep space long exposure mode in the sharpcap software, users can choose according to their actual shooting needs, and realize one-key quick setting. It can be saved for convenient one-key setting next time. The unique one-button operation mode makes planet shooting easier;
 - UV/IR CUT protective glass: It effectively blocks ultraviolet and infrared light, ensuring clear images and accurate colors. At the same time, it protects the camera sensor, reducing unnecessary light pollution and image distortion;
 - Using HCG noise reduction technology, when the gain is increased, the HCG mode will be automatically turned on, which can greatly reduce the readout noise, and at the same time retain the high dynamic range of low gain. When the gain value of SV305C telescope camera is 190, HCG will be turned on automatically.

Top New Year Gift Ideas: Perfect Presents for Everyone!
Specifications
| Model | SV305C |
| Sensor Model | SONY IMX662 |
| Total Pixels | 2.1 Mega Pixels |
| Diagonal | 6.44mm |
| Max Resolution | 1920×1080 |
| Pixel Size | 2.9μm X 2.9μm |
| Chip Size | 5.6mm×3.2mm |
| Frame Rate | 24FPS |
| Shutter | Rolling shutter |
| Exposure Range | 32μs-2000s |
| Readout Noise | 6.5e~0.7e |
| QE Peak | ≈91% |
| Full Well | 38ke |
| ADC | 12 bit |
| ROI | YES |
| BIN | 1X1 2X2 |
| Digital Noise Reduction | HCG |
| Compatible System | Windows , Linux OS , Raspberry Pi , Mac os, Chrome os |
| Built-in buffer | 128M |
| Data Port | USB2.0 |
| Adapter | 1.25″/CS/C |
| Protective Window | UV/IR CUT |
| Back Focal Length | 7.5mm/12.5mm |
