SV550 122 APO Refractor Telescope - SV209 0.8x Focal Reducer/Field Flattener Set for Photography
Telescope Wolves
- Regular price
- Price: $1,676.99 USD
- Regular price
-
List Price:
- Sale price
- Price: $1,676.99 USD
- Unit price
- per
Couldn't load pickup availability
Availability: Pre-order
Estimated Arrival: Between Dec 05 and Dec 19. United States
Ships within 4-7 days
- Description
- Shipping & Returns
- Price Match
- Warranty
- Reviews
- Product Q&A
- Manuals
Description
SVBONY SV550 APO Refractor Telescope
The SV550 APO Triplet refractor is a compact refractor with 122mm aperture, f/7 focal ratio and 854mm focal length. It is a great travel telescope for astrophotography and observation. The OTA weighs only 6.44kg/ 14.18lb, easy to carry out when fitting into the carrying case.

Superior Performance
1. The APO triplet refractor features a 122mm aperture and 854mm focal length,which is an absolutely upgraded version of the SV550 80mm. The refractor gathers more light, and offers more clear and detailed images, suitable for deep sky photography and observation, for galaxies, nebulae, star clusters and even some fainter deep sky objects, due to the higher limiting magnitude.
2. The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.
3. The length of the dovetail is as high as 300mm, longer than the length of most dovetails. It can maintain the balance to the greatest extent, and it will be more convenient in the adjustment process.
4. The entire tube rings have 26 screw holes + a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.
FPL-51 Triplet Apochromatic Lens Structure
FPL51 Triplet > FPL53 Doublet -- Just For Better Clarity
The SV550 122mm adopts a FPL-51 triplet apochromatic lens structure which contains one piece of ED glass. The triplet lens provides better correction of aberration and significantly reduces chromatic aberration and enhance the clarity and sharpness.
R&P Dual Speed Focuser

The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.
Compatible With 2-inch Interface & M63*1 Threads
The SV550 refractor is compatible with 2-inch and M63*1 accessories. The front is a 2-inch adapter for connecting a camera or 2-inch accessories; Rotating off the adapter, here threaded the M63*1 threads, for connecting the SV209 field flattener or other M63*1 accessories.

Features
The SV550 APO triplet refractor is a compact refractor with 122mm aperture, f/7 focal ratio and 854mm focal length, a great travel telescope for astrophotography and observation. It is an absolutely upgraded version of the SV550 80mm. This refractor has a higher limiting magnitude, can gather more light, and provide clearer and more detailed images. It is very suitable for deep sky photography and observation, especially for galaxies, nebulae, star clusters, and even some fainter deep sky objects.

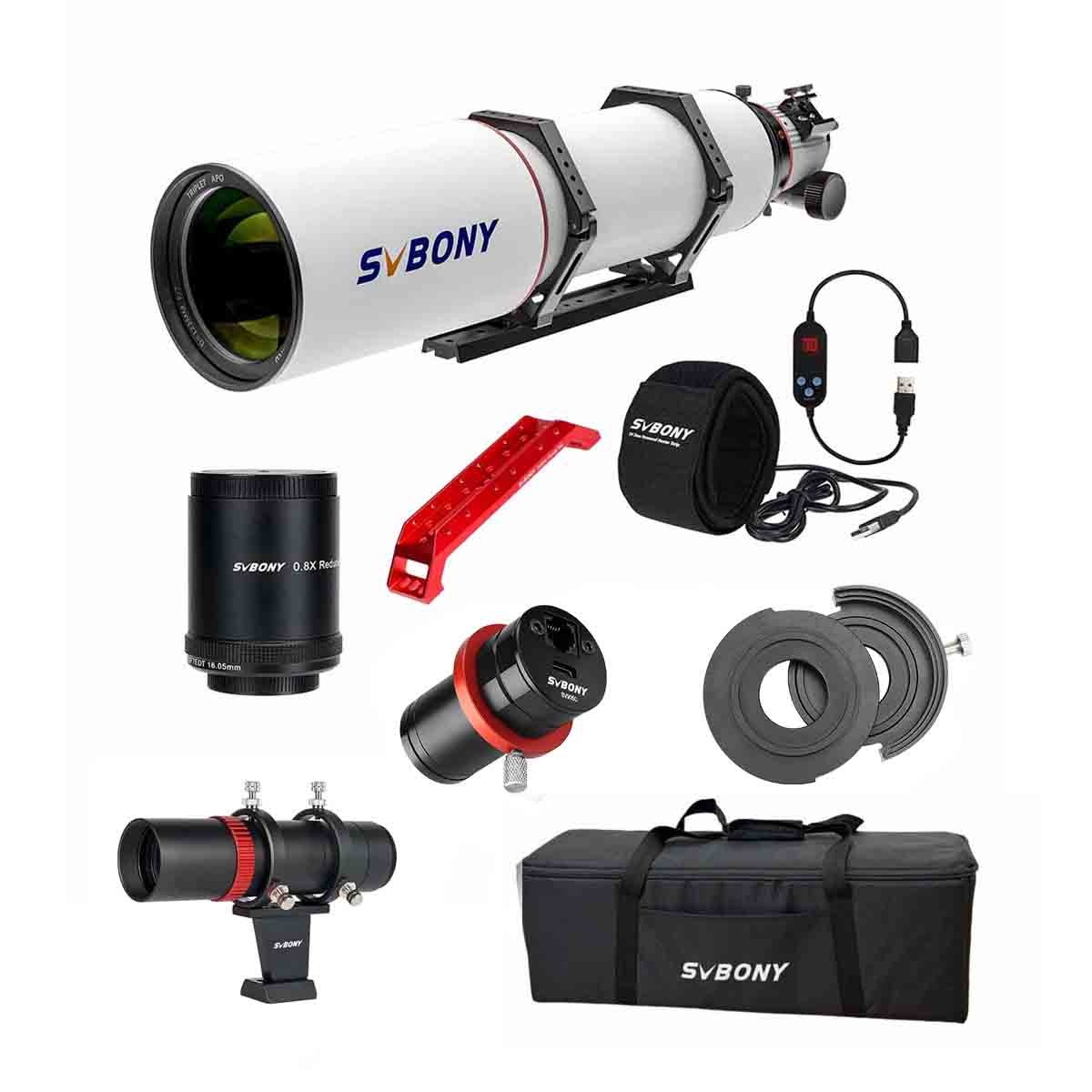

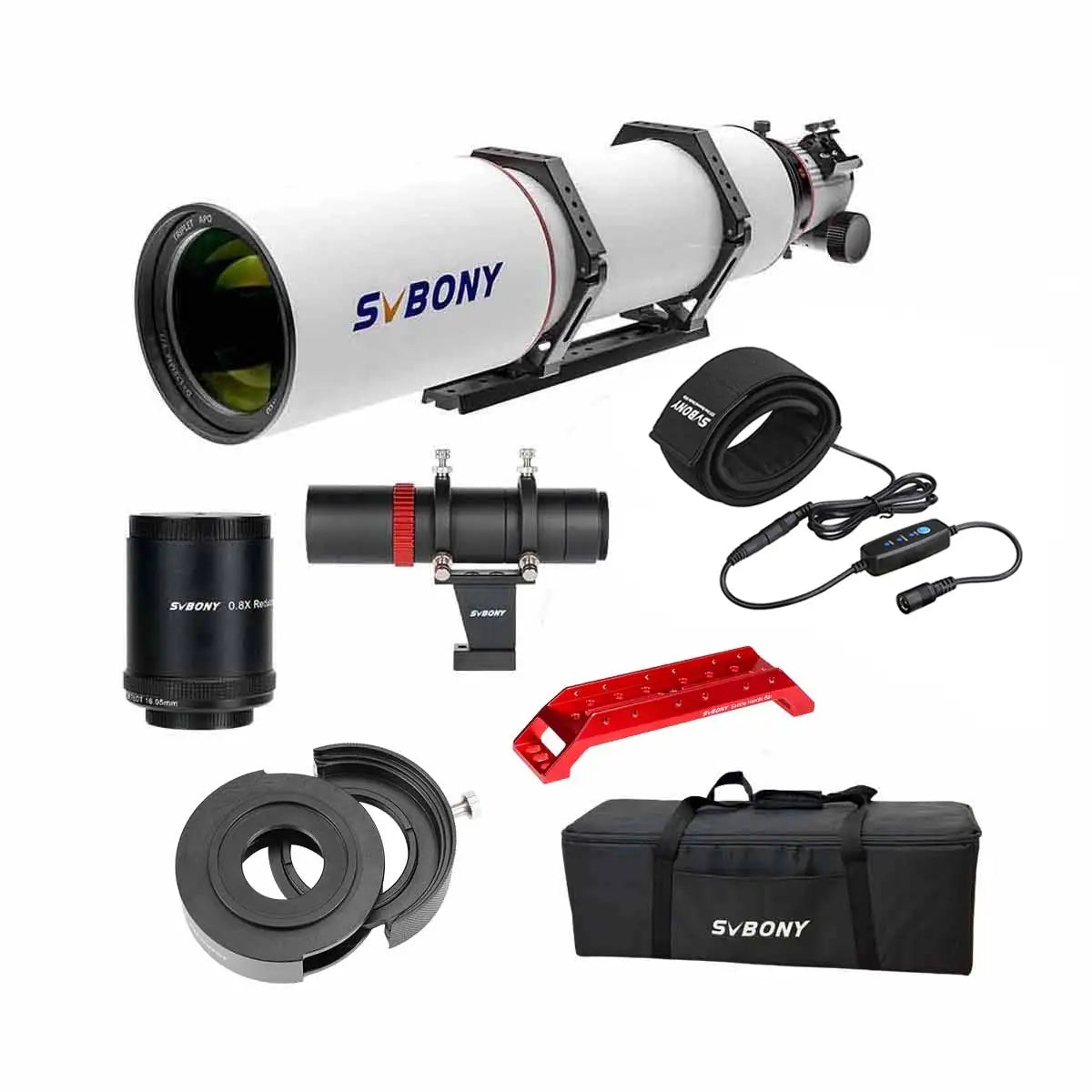

Bundle 1:SV550 122APO telescope OTA + SV209 Focal Reducer/Field Flattener + SV165 Guide Scope + SV226 Filter Drawer + SV211 Handle Bar + SV192 Dew Heater + SV212 Carrying Case Bag
Bundle 2:SV550 122APO telescope OTA + SV209 Focal Reducer/Field Flattener + SV165 Guide Scope + SV905C Guide Camera + SV226 Filter Drawer + SV211 Handle Bar + SV192 Dew Heater + SV212 Carrying Case Bag
Review Video by @NebulaPhotos Unboxing Video
Free Shipping
Specifications
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 122mm |
| Focal Length | 854mm |
| Focal Ratio | f/7 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.15 arc seconds |
| Coatings | Fully Multi-coated |
| Tube Material | Aluminum |
| Focuser | 2.5" rack-and-pinion, dual speed (1/10) |
| Tube Travel | 87mm |
| Visual Limiting Magnitude | 12.3 |
| Lens Design | Apochromatic |
| Dovetail Plate Length | 300mm |
| Highest Useful Magnification | 244x |
| Additional Thread | M63x1 female thread for adaptions |
| Dew Shield Type | Retractable |
| Tube Outer Diameter | 154mm |
| Net Weight | 6440g/14.18lb |
| Gross Weight | 10000g |
| Brand | SVBONY |
| Model | SV209 |
| Optical Tube Length | 120 Millimeters |
| Eye Piece Lens Description | FMC |
| Objective Lens Diameter | 50.8 Millimeters |
| Telescope Mount Description | Equatorial Mount |
| Product Dimensions | 5"D x 4"W x 3"H |
| Focus Type | Manual Focus |
| Power Source | Focal Reducer |
| Finderscope | Straight-Through |
| Item Weight | 0.45 Kilograms |
| Brand | SVBONY |
| Model | SV165 |
| Aperture | 40 mm / 1.57 inch |
| Focal Length | 160 mm / 6.30 inch |
| Focal Ratio | f/4 |
| Lens | 2-Element Lens w/ Fully multi-coating |
| Connection | 1.25" & T2 |
| Focuser Type | Front Part Focuser |
| Back Focus | 12.5mm |
| Tube Travel | 15mm |
| Surface technology | Sandblasting oxidation |
| Material | Aluminum |
| Net Weight | 449.8g / 15.87oz |
| Body Size | 179x114x59mm / 7.05x4.49x2.32 inch |
Brand |
SVBONY |
Model |
SV226 |
Product Name |
Filter Drawer |
Thickness |
21mm |
Support Filter size |
1.25" &2" |
Material |
Aluminum |
Camera side thread |
M42 x0.75 (male) |
Filter mounts thread |
M48x0.75/M28.5x0.6 (female) |
Telescope side thread |
M48x0.75 (female) |
Net Weight |
400g |
Diameters |
130x120x100mm |
| Model | SV905C |
| Sensor | IMX225 |
| USB Type | TypeC USB2.0 |
| Pixel Size | 3.75µmx3.75µm |
| Image Area | 4.8mm×3.6mm |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum Resolution | 1280×960 |
| Exposure Time | 64us~20s |
| Gain | 0-500 |
| Maximum Frame Rate | 39 FPS |
| Read noise | 4.0 e |
| QE peak | 80% |
| Shutter type | Rolling Shutter |
| Full well charge | 13ke |
| ADC | 12 bit |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI mode |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2 ASCOM platform Linux OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃~45℃ |
| Storage temperature | - 20℃~60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |
| Back intercept | 8.5mm/12.5mm |
| Protective glass | AR Coating |
| weight(with parcel) | 230g |
| Package size | 162*132*70 mm |
