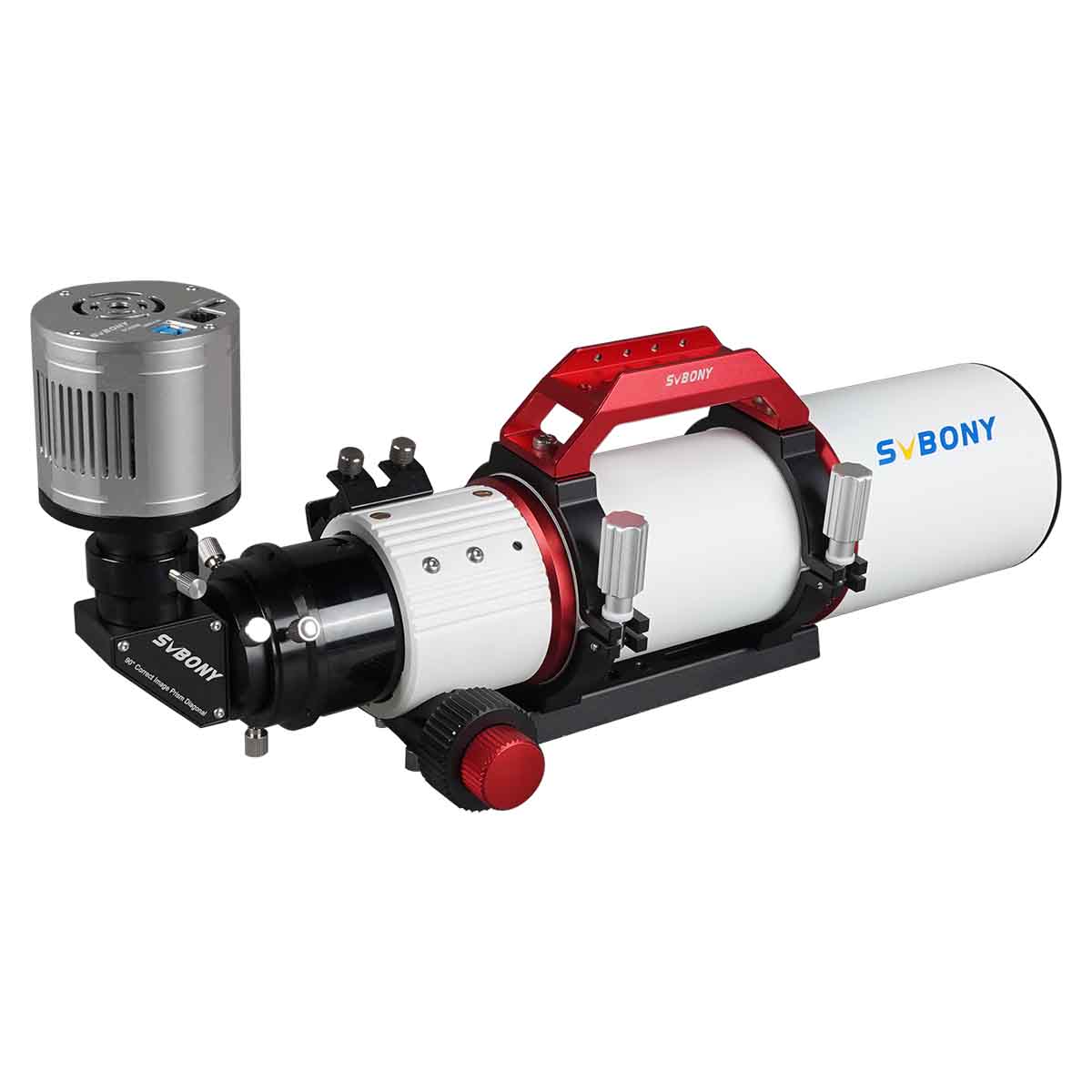

SV550 80APO - SC432M Solar Camera for Sun Eclipse & Sunspots Photography

Telescope Wolves

Regular price
Price: $1,148.99 USD
Regular price
List Price: $1,276.66 USD
Sale price
Price: $1,148.99 USD
You save: $127.67 (10%)
Shipping calculated at checkout.

Availability: Pre-order

Estimated Arrival: Between Dec 05 and Dec 19. United States

Ships within 4-7 days

  • Description
  • Shipping & Returns
  • Price Match
  • Warranty
  • Reviews
  • Product Q&A
  • Manuals

Description

This Solar Set includes:

  • SV550 80APO, SKU: F9381A
  • SC432M Mono Sun Camera, SKU: F9387A
  • SV223 2inch 90-degree Diagonal, SKU: W9180B
  • SV229 solar filter, SKU: W9183B



Specifications

Brand SVBONY
Model SV550
Aperture 80mm
Focal Length 480mm
Focal Ratio f/6
ED Glass​ FPL51​
Telescope Type Refractor
Resolution 1.45 arc seconds
Coatings  FMC
Limiting stellar magnitude 11.6
Lens design  Apochromatic​
Dovetail plate length 150-175mm
Barrel weight 2900g
Mirror Brief Size  377.8mm
Tube material Aluminum
Focuser 2.5'' rack-and-pinion,dual speed(1/10)
Load bearing of focuser 5kg
Tube Outer Diameter 103mm
Tube Travel 80mm
Dew shield type Retractable
Additional thread M63×1 female thread for photo adaptions
Net weight​ 3750g
Gross weight​ 3850g
Package size​ 440x220x210mm​
Brand SVBONY
Style SV229
Name Solar Filter
Material Polymer+ Aluminum Frame
Model W9183B W9183C
Aperture 103mm  140mm
Outer Diameter  80mm - 118mm 118mm - 159mm
Fit for OTA SV503 70mm f/6, SV503 80mm f/7, SV550 80mm f/6, MK90, SV48P 90 SV48P 102, Mk105, SV503 102mm f/7, SV550 122mm f/7
Brand SVBONY
Model SV223
Size 2inch
Optical Design Mirror Diagonal
Inner Connection (Lens Sided) Thread M48x0.75
Outer Connection (Lens Sided) Barrel 2inch
Inner Connection (Eyepiece Sided) Clamp 2inch
Reflection Surface Dielectrically Coated
Reflectivity >99%
Image Orientation Erect image, Mirror Inverted
Optical Length appr. 109.1mm
Clamping System Clicklock
Deflection Angle 90°
Clear Aperture 43mm
Material Metal
Thickness of Mirror 11.5mm
Net Weight 573.7g/20.24oz
Name Solar Camera
Model  SC432M
Sensor SONY IMX432 Mono CMOS
Shutter Type Global Shutter
Frame Rate 120FPS
Pixel Size 9μm
Resolution 1608×1104
Minimum Back Focal Length 7.5mm/12.5mm
Target Surface Size 14.5mm×9.9mm
Diagonal Length 17.5mm
Cache DDR3, 256M
Protective Glass AR Anti-reflection coating
QE 0.79
Full Well 97Ke
Readout Noise 2.4e-20.8e
ADC 12bit
Temperature Display Add temperature sensor, software interface displays real-time temperature of the chip
Exposure 20μs-2000s
Gain Absolute value
USB Speed 0,1,2
Background Level 0-255
ROI Support
HCG Gain 140, automatically activate HCG noise reduction mode, readout noise reduced to 2.4e, achieving 12 stops of dynamic range
BIN BIN1, BIN2, BIN3, BIN4
Color Space MONO8, MONO16
Output Format PNG/JPG/AVI/SER/FITS/TIFF/ADV
Image Flip None/Horizontal/Vertical/Both
Contrast 0-100
Gamma 0-10
Sharpening 0-100
Histogram Display Support
Local Driver Supports imaging software such as Sharpcap, Firecapture, AstroDMX Capture
ASCOM Driver Support
Compatible Systems Windows OS 7-11/Linux Ubuntu/Mac OS X86, ARM, M1, M2/Raspberry Pi 3, Pi4
Camera Body Interface 1 M42 thread interface (M420.75)
Camera Body Interface 2 USB-C power data port
Camera Body Interface 3 ST4 guide star interface
External Interfaces M42 thread to 1.25-inch extension tube
M28.5 filter thread interface
