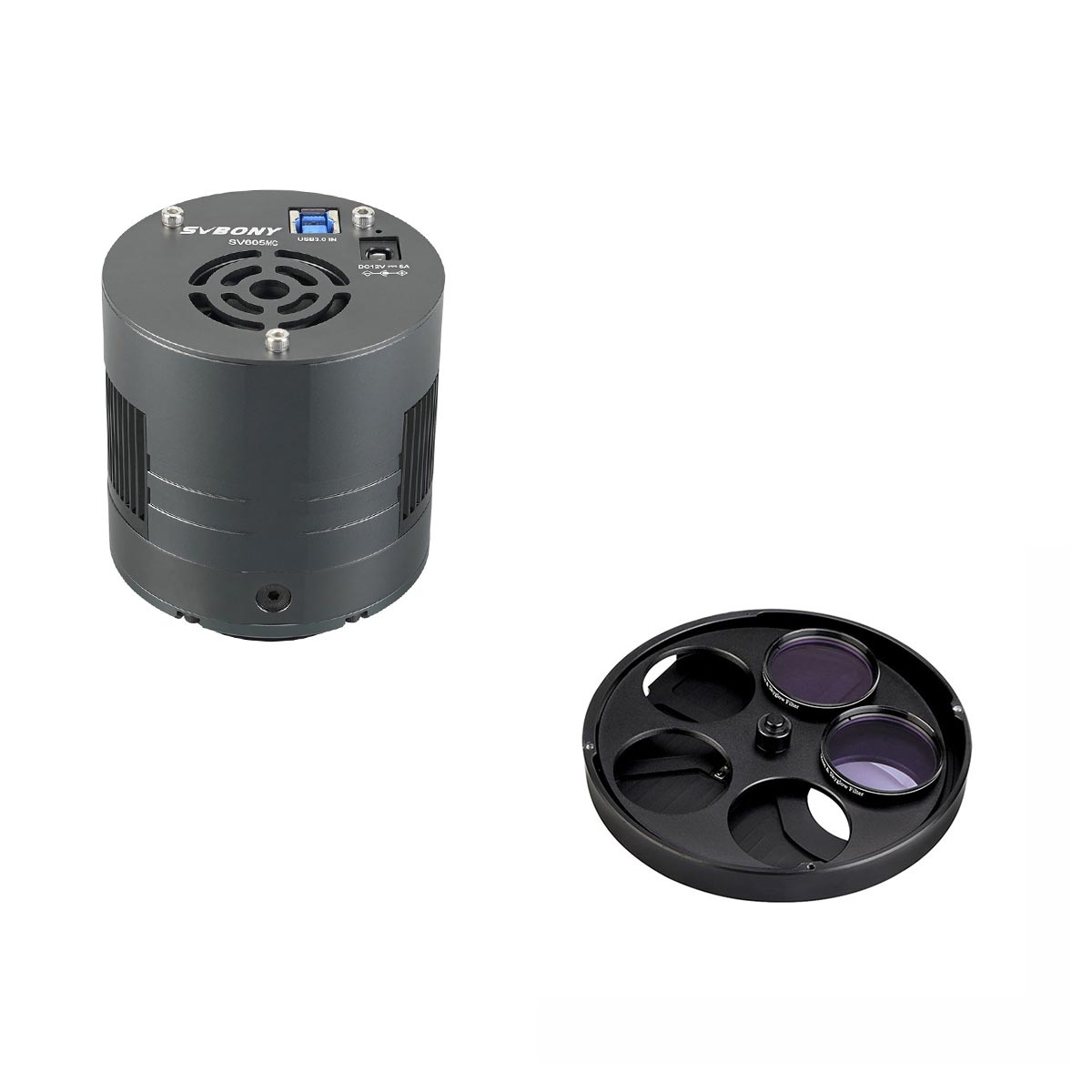

SV605MC Mono Cooled Camera IMX533 for Deep Space Astrophotography

Telescope Wolves

Regular price
Price: $0.00 USD
Regular price
List Price:
Sale price
Price: $0.00 USD
Shipping calculated at checkout.
STYLE

Availability: Pre-order

Estimated Arrival: Between Dec 04 and Dec 18. United States

Ships within 4-7 days

  • Description
  • Shipping & Returns
  • Price Match
  • Warranty
  • Reviews
  • Product Q&A
  • Manuals

Description

SV605MC IMX533 Monochrome Cooled Camera  for Deep Space Astrophotography

SV605MC mono camera has a high quantum effect (QE), low readout nose, high frame rate. It can make the details more delicate. Staivis back-illuminated pixel technology and the exposure time of 32 μS-2000S improves sensitivity and can help enhancing image quality in a darker environment.

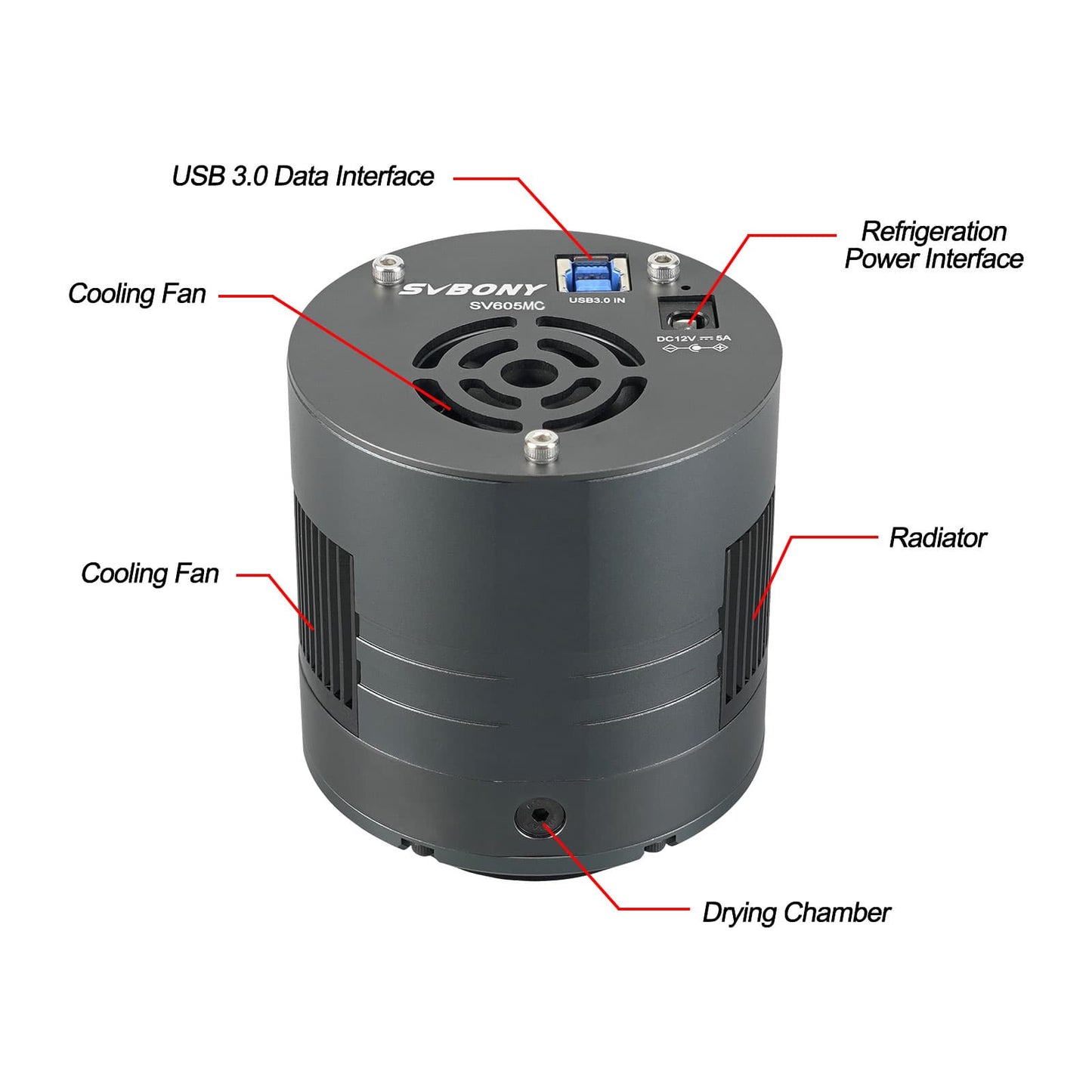

2 Stage TEC Cooling & Sensor Independent Cavity Design

The sensor of SV605MC cooled camera is designed of the independent cavity which can prevent the CMOS and protective window glass from the brought by multiple cooling.

svbony-sv605mc-cooled-camera

svbony-sv605mc-cooled-camera

Amplify Control

If you see a weak infrared light source at the corner of the unregulated image, this is a normal phenomenon, because traditional CMOS sensors often do not have no amp-glow during the operation. SV605MC telescope camera uses amplify control circuit, which can effectively suppress the glow.

svbony-sv605mc-cooled-camera

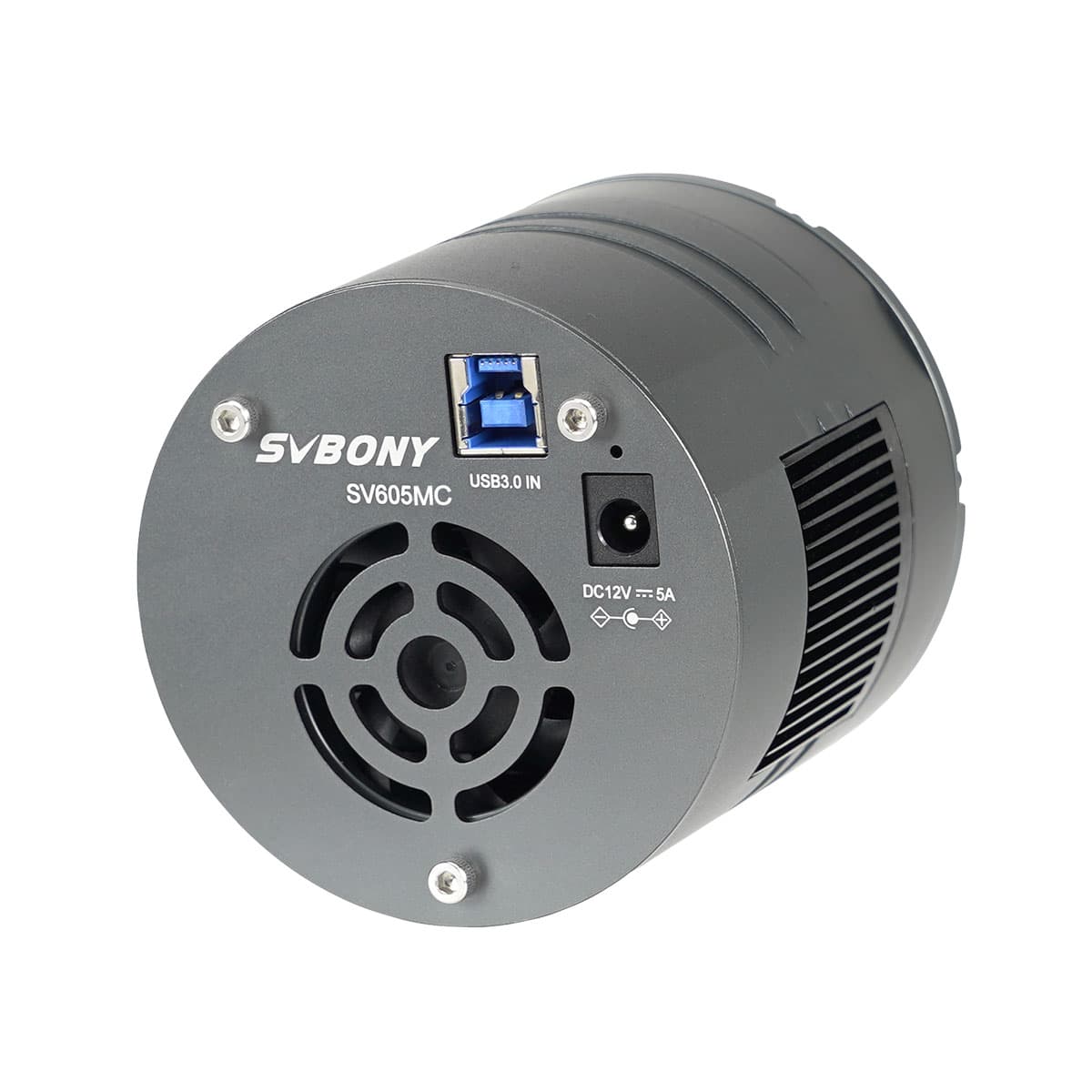

USB 3.0 connection

With USB 3.0 connection, computer can improve the transmission rate, for planet observation, moon default observation, and deep sky objects.

svbony-sv605mc-cooled-camera

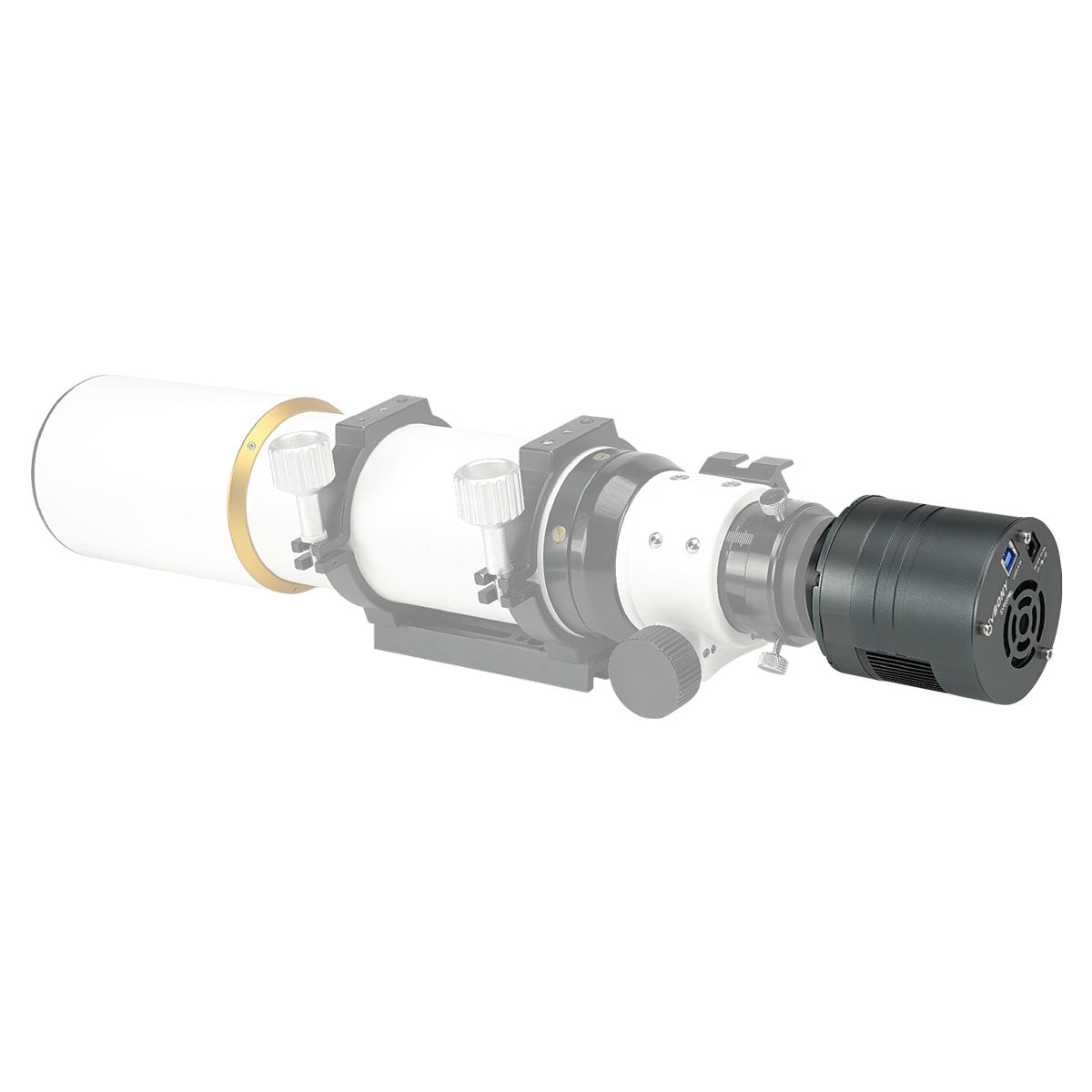

SV605MC For Deep Sky Astrophotography

SV605MC astronomy camera is designed for deep sky photography. It can be used with other attachments for a series of photography activities. It can also be used for moon, planet and sun (extra with solar filter) photography.

svbony-sv605mc-cooled-camera

Real-shot photos

Photography by Rory Gillies

sv605mc cooled camera

sv605mc cooled camera

SKU F9198E F9198F F9198K F9387A
Model SV605MC SV405CC SV605CC SC432M
Sensor IMX533 IMX294 IMX533 IMX432
Classification Monochrome Color Color Monochrome
Shutter Type Rolling Shutter Rolling Shutter Rolling Shutter Global Shutter
Pixel Size 3.76μm X 3.76μm 4.63µm 3.76μm X 3.76μm
Resolution 9MP 11.7MP 9MP
Diagonal Length 15.968mm 23.2mm 15.968mm 17.5mm
USB Type USB3.0 USB3.0 USB3.0

Features

  • The sensor incorporates a 14-bit A/D converter, the 14-bit digital output makes it possible to read out the signals of 9.07M effective pixels at a high speed of 20 FPS. Read-out noise is as low as 1.0e which makes sure the highly suitable for high definition, low noise deep space objects imaging;
  • Foldable and portable: This camera is foldable and easy to carry, it can be easily stored in your backpack or pocket;
  • The SV605MC features a USB 3.0 data transmission interface and a built-in 256MB DDR3 high-speed memory for fast and efficient deep-sky objects imaging, and to buffer image data and ensure stable data transmission;
  • The HCG digital noise reduction technology is adopted, and the readout noise can be greatly reduced while maintaining a high dynamic range;
  • SV605MC features an improved amp glow suppression design, which guarantees a high-quality "dark" image.

Specifications

Brand SVBONY
Model SV605MC
Sensor Size 15.469mm(H) x16.375mm(V)
Diagonal 15.968mm
Image Area 11.31mm x 11.31mm
Maximum Resolution 3008*3008
Effective Pixels 9MP
Maximum Frame Rate 20FPS
Pixel Size 3.76μm(H) x 3.76μm(V)
Shutter Type Rolling Shutter
Exposure Time 32ms-2000S
Read Noise 1.0-3.3e-
Buffer Memory DDR3 256M
ROI YES
QE 0.91
Full Well Charge 50Ke-
ADC 14bit
Output Image Format Mono8/Mono16
Pixel Binning BIN1,BIN2,BIN3,BIN4
