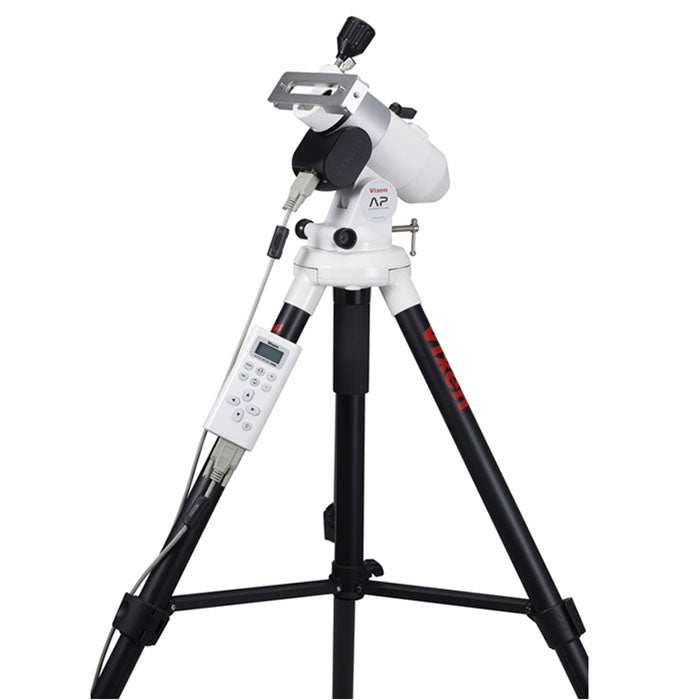

Compact Mount AP Photoguider

Explore Scientific

Regular price
Price: $1,565.99 USD
Regular price
List Price:
Sale price
Price: $1,565.99 USD
Shipping calculated at checkout.

Availability: Pre-order

Estimated Arrival: Between Dec 02 and Dec 16. United States

Ships within 4-7 days

  • Description
  • Shipping & Returns
  • Price Match
  • Warranty
  • Reviews
  • Product Q&A
  • Manuals

Description

Exclusive tool for shooting starscape images with camera

There are many subjects for shooting, constellations, meteors, and comets. The AP photoguider is an equatorial mount designed to shoot starscape images with excellent tracking accuracy in a compact body. The equipped STAR BOOK ONE controller assures high-precision tracking.

Excellent tracking accuracy

The AP Photoguider allows you to take pinpoint photos of stars and constellations without guiding corrections for the length of several minutes. If you have a digital SLR camera with a telephoto lens, shooting nebulae and star clusters will be fun with the AP Photoguider.

Lightweight

The AP Photoguider includes the sturdy but lightweight APP-TL130 tripod, with the complete system weighing only about 5.4kg, convenient for transporting to a dark location away from light pollution.

Shooting

Attach the camera mount on the dovetail slide bar PG first and then camera set for shooting. You can start shooting immediately if you mount a lightweight camera. In case of mounting a heavy camera, attach a supplementary counterweight bar as well as a counterweight 1kg for stable conditions.

Polar alignment scope

The AP Photoguider is equipped with the polar alignment scope where polar axis is aligned at accuracy within 3 ar sec, using auto power off for illumination of the dark field illuminator.

Accessory shoe

The AP Photoguider is provided with an accessory shoe. You can attach an optional poler meter to be able to align where Polaris is not visible.

Specifications

Product Specifications

Configuration: AP polar axis body unit, R.A. Motor module and STAR BOOK ONE set, PG mount head set, Polar alignment scope PF-L
Slow motion control: Wheel and worm gears full circule micro movement by electricity
Quick slewing motion: Friction control system
Wheel gear: 73.5mm in diameter, 144-tooth
Worm gear / R.A. gearDia. 11mm, brass / Dia. 59mm aluminum
Bearings: Ball-bearing x 4pcs (RA motor module, AP Polar axis body unit x 2pcs each)
Azimuth adjustment: ±6.5°fine adjustment with twin adjustment screws knobs, 1.4°/rotation
Altitude adjustment: 0 to 65° with tangent screw with handle, 1.9°per rotation
Polar alignment scope: 6x20mm, 8°actual field of view, auto power off (8 step adjustable). 3 alignment stars system.
Drive / Tracking: Electric drive with pulse motor / High accuracy tracking with STAR BOOK ONE controller.
Max. loading capacity: 6kg (150kg-cm torque load)
Cable connecting terminal: D-SUB9PIN male
Power contact: USB Micro-B terminal Male
Power supply: USB Micro B
Compatible power supply: USB external power supply
Power consumption: DC5V 0.2-0.5A (1.0-2.5W)
Weight: 2.4kg
Total weight: 5.4kg
Material, type: Aluminum 3-section leg
Dimensions / WeightL: 570⇔1,296mm, H:526⇔1,159mm, closed 598.4mm, Radius: 350⇔710mm, 3.0kg
