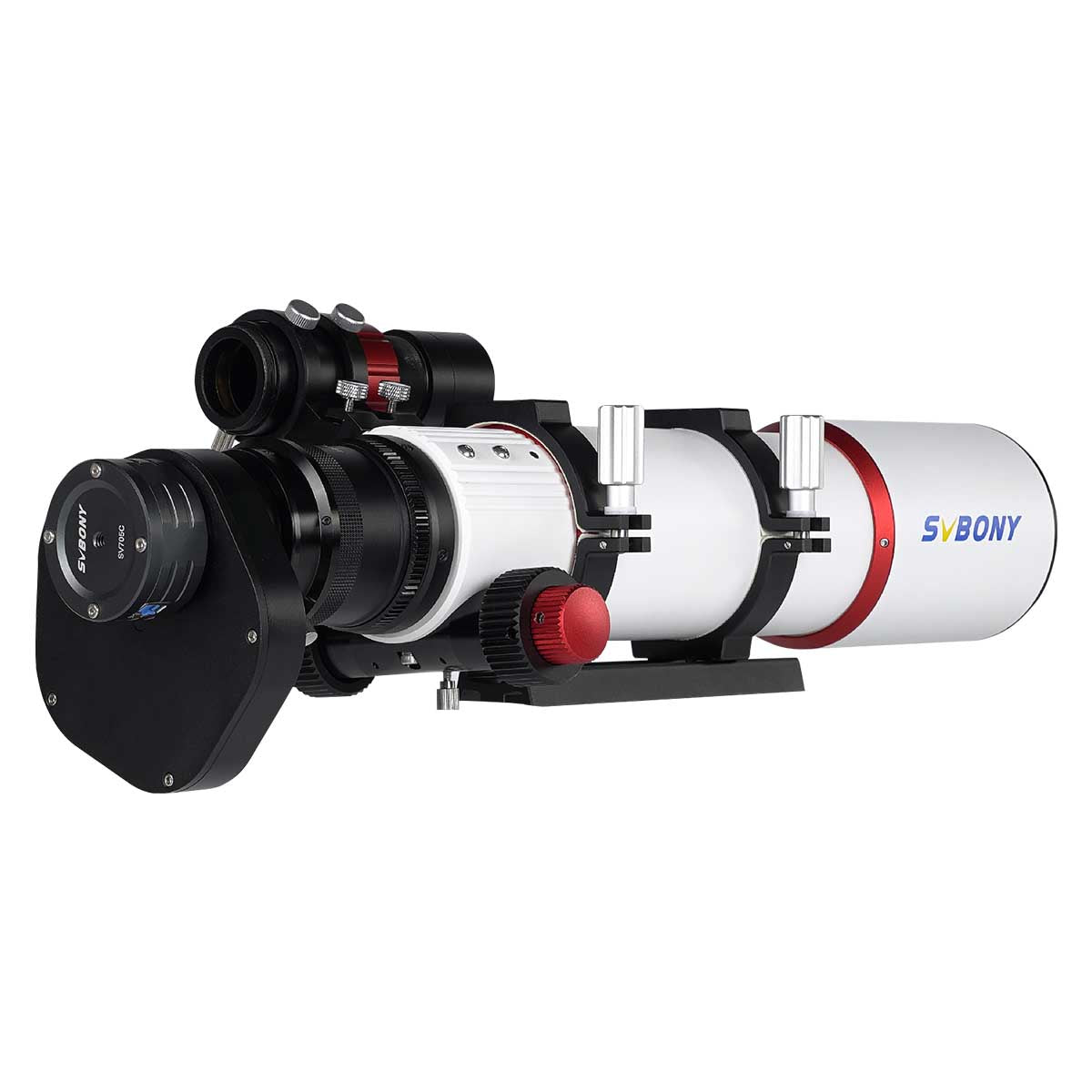

SV550 80APO Refractor Telescope - SV705C Planetary Camera Set for Planetary Imaging

Telescope Wolves

Regular price
Price: $1,044.99 USD
Regular price
List Price: $1,161.10 USD
Sale price
Price: $1,044.99 USD
You save: $116.11 (10%)
Shipping calculated at checkout.

Availability: Pre-order

Estimated Arrival: Between Dec 05 and Dec 19. United States

Ships within 4-7 days

  • Description
  • Shipping & Returns
  • Price Match
  • Warranty
  • Reviews
  • Product Q&A
  • Manuals

Description

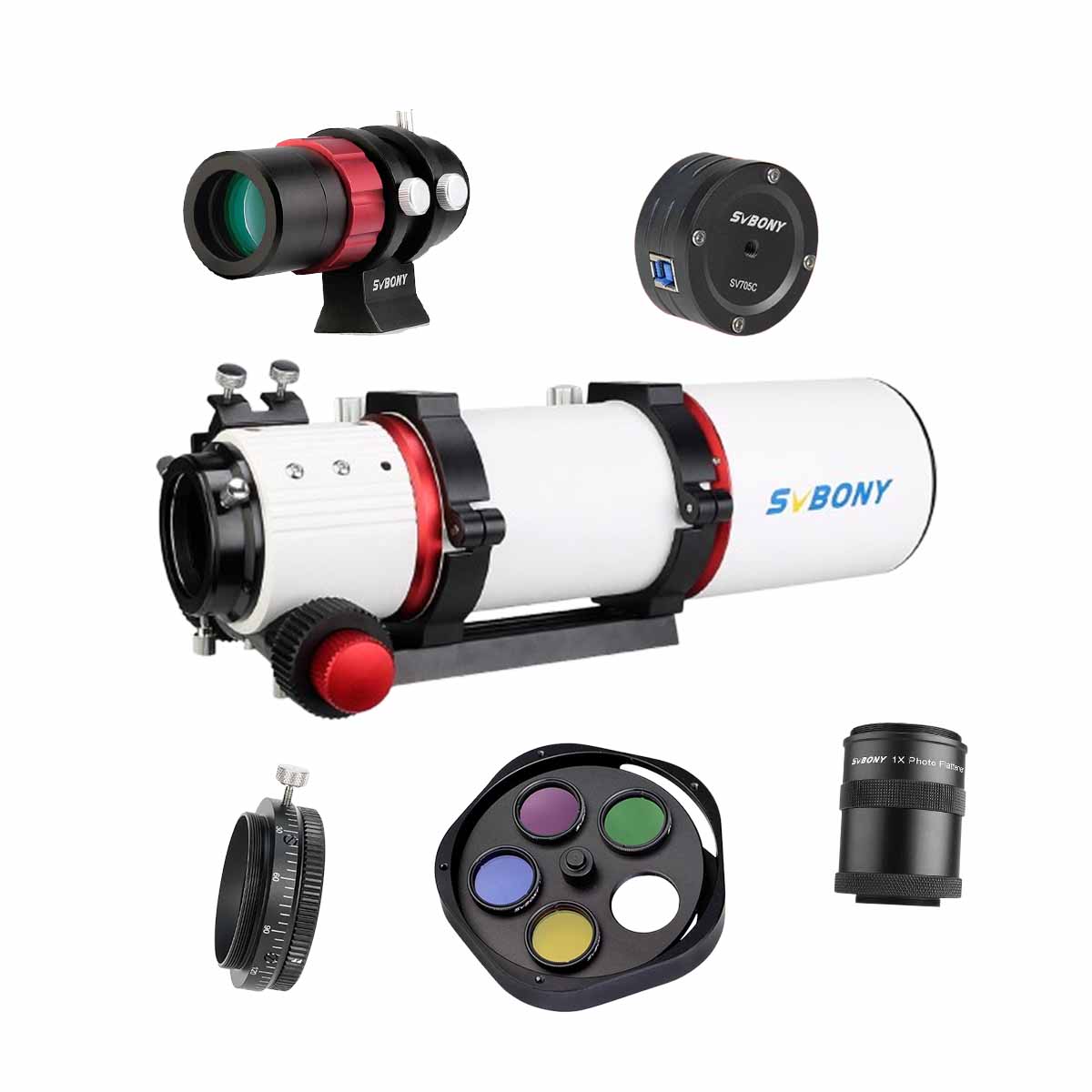

sv550 80 triplet apo photography set

sv550 80 triplet apo photography set

sv550 80 triplet apo photography set

Specifications

Model SV550
Product Name APO Refractor
Aperture 80mm
Focal Length 480mm
Focal Ratio f/6
ED Glass​ FPL51​
Telescope Type Refractor
Resolution 1.45 arc seconds
Coatings  SMC
Limiting stellar magnitude 11.6
Lens design  Apochromatic​
dovetail plate length 150-175mm
barrel weight 2900g
mirror Brief Size  377.8mm
Tube Outer Diameter 103mm
Net weight​ 3750g
Gross weight​ 3850g
Package size​ 440x220x210mm​
Model SV705C
Product Name Planetary Camera
Sensor IMX585
Total Pixels 8.3 Mega Pixels
Diagonal 12.85mm
Max Resolution 3856×2180
Pixel Size 2.9μm X 2.9μm
Chip Size 11.2mm×6.3mm
Frame Rate 45FPS
Shutter Rolling shutter
Exposure Range 32μs-2000s
Readout Noise 6.5e~0.7e
QE Peak ≈90%
Full Well 38k e
ADC 12 bit
ROI YES
BIN 1X1 2X2
Digital noise reduction​ HCG
Compatible OS Windows , Linux OS Raspberry Pi,Mac os, Chrome os
Caching 128M
Guiding Port ST4
Data Port USB3.0
Adapter 1.25″/2″/ M42X0.75/CS/C
Back Focal Length 6.5mm/12.5mm
Protective Window AR Coating
Working Humidity 30%-80%
Storage Humidity 20%-90%
Operating Temperature -10℃ to +50℃
Storage Temperature -20℃ to +60℃
Net Weight 575g
Product Size Ø58x38.3mm
Model  SV165
Product Name 30mm Mini Guider Scope
Aperture  30mm
Focal length 120mm
Focal Ratio F4
Hoop and Mount Yes
Tube travel 45mm
Back Focus Length 26mm
Mount UNC 1/4-20
Material Aluminum
Surface technology Sandblasting oxidation
Model SV209
Product Name Field Flattener 1.0x
Additional Thread M63x1 female thread for photo adaptions
Connection at Telescope Side M63x1 male thread
Connection 1 at Camera Side M63x1 thread female - working distance 103 mm
Connection 2 at Camera Side M48x0.75 male thread - working distance 55 mm or 91.5 mm
Fully Illuminated Field 45 mm(Support Full Frame Sensors)
Number of Elements 2 lenses
Factor 1.0 - no change of focal length to the focal plane
Coating FMC
Diameter of the Housing 67mm
Length 87.5 mm without the male thread
Model  SV210
Product Name M63 CAA 360° Rotator Camera angle adjuster
Extension thickness 20.7mm
Fit for SV550 80F6
Locking Screw M4
Positioning lock Function Yes
Male Thread  M63x1
Female Thread M63x1
Length of Male Thread 8mm
Length of Female Thread 9mm
Material 6061T
Color Black
Net Weight 91.2g/3.22oz
Model SV133
Product Name Filters Wheel 1.25inch Multiple 5-Position
Size 1.25''
Type Manual
Color Black
Net Weight 351.5g / 12.4oz
