SVBONY SV550 80 APO Triplet Refractor Set for Visual Observation

Telescope Wolves

Regular price
Price: $854.99 USD
Regular price
List Price:
Sale price
Price: $854.99 USD
Shipping calculated at checkout.
Style

Availability: Pre-order

Estimated Arrival: Between Dec 05 and Dec 19. United States

Ships within 4-7 days

  • Description
  • Shipping & Returns
  • Price Match
  • Warranty
  • Reviews
  • Product Q&A
  • Manuals

Description

svbony sv550 80 apo triplet refractor set for visual observation

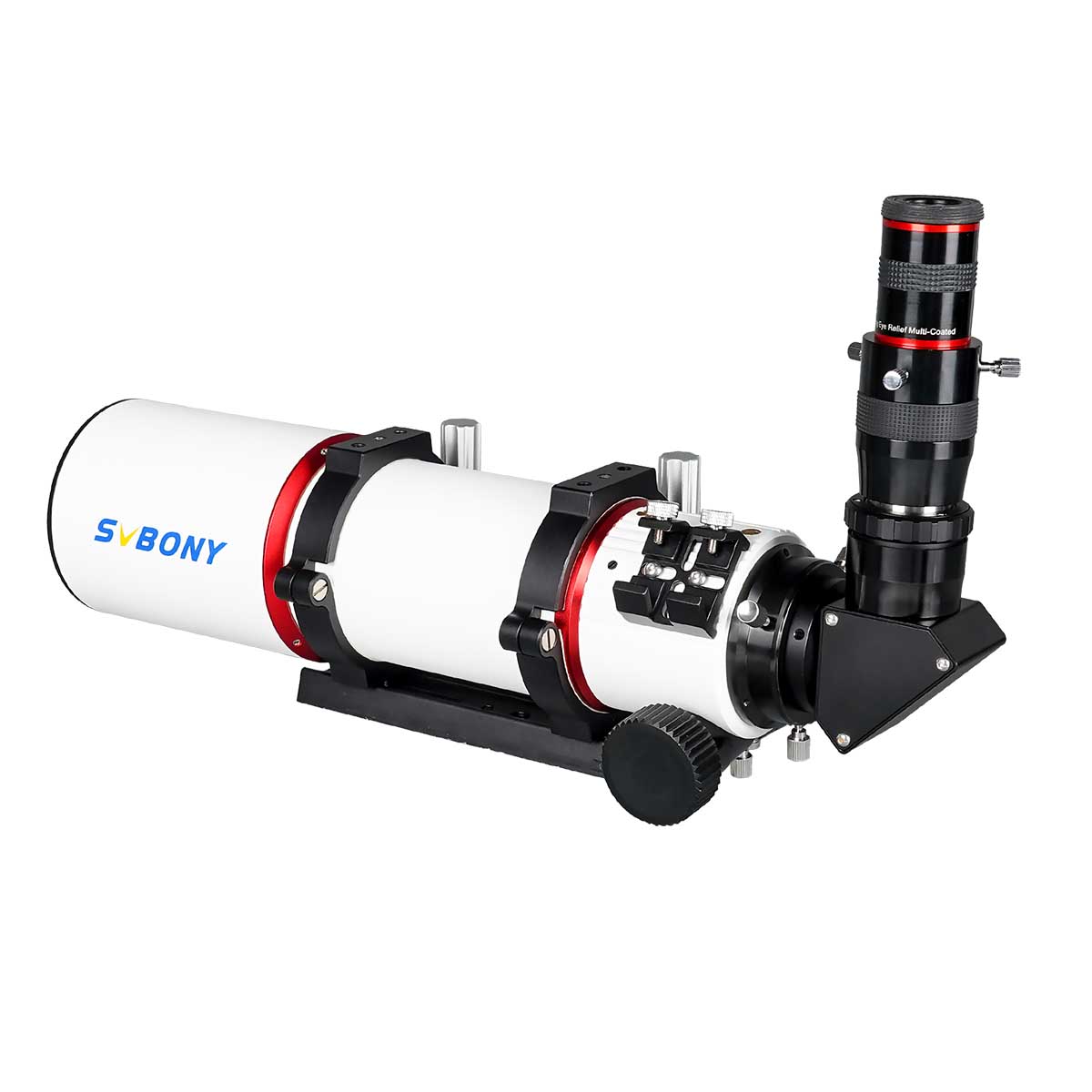

The SV550 APO Triplet refractor with 80mm aperture and fast f/6 focal ratio, it is definitely a great travel telescope for observation and astrophotography.

svbony sv550 80 apo triplet refractor set for visual observation

The triplet apochromatic optics structure (1 piece of S-FPL51 low dispersion ED glass + 2 pieces of correction glass) is adopted to significantly improve the image quality of the captured image (15.8% increase by the spectrometer calculation). Significantly reduces edge dispersion resulting in blue fringing problems.

svbony sv550 80 apo triplet refractor set for visual observation

svbony sv550 80 apo triplet refractor set for visual observation

svbony sv550 80 apo triplet refractor set for visual observation

To remove the 2-inch adapter from the focuser, you will need to loosen the three small screws on the side of the adapter (as indicated in the red circle in the image). Please use an appropriate Allen wrench to gently loosen these screws; there is no need to completely remove them down. Once the three screws are sufficiently loosened, you can turn the adapter counterclockwise to detach it, allowing you to proceed with installing the SV209 flat field lens. Additionally, if you experience any loosening of the focuser adapter during use, you can also adjust the tightness of the small screws to secure it properly.

Features

Use this APO OTA apochromatic refractor to reveal the wonders of celestial bodies!

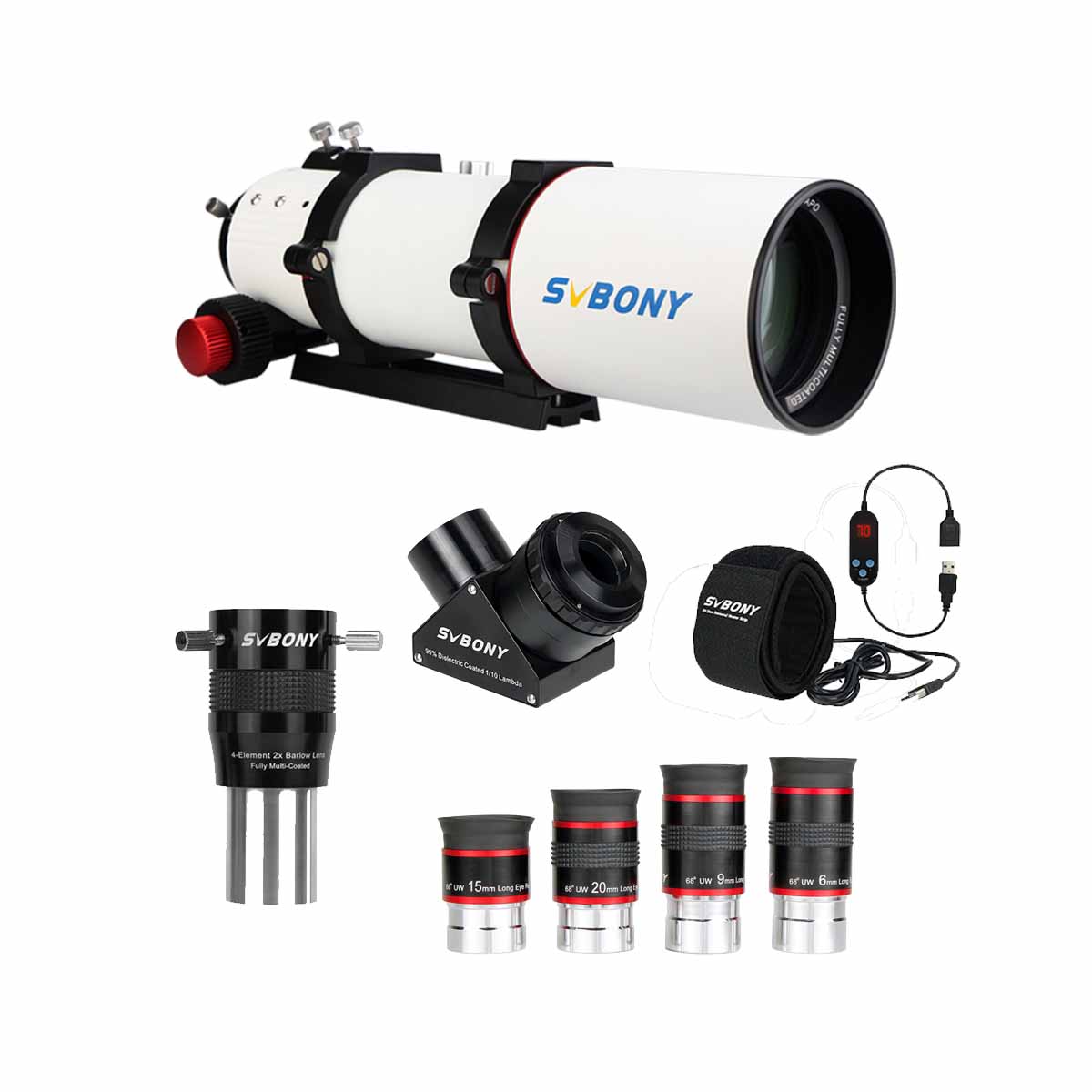

Bundle1: SV550 80APO OTA + SV223 Diagonal + SV216 Barlow Lens + SV172 Dew Heater + 68 Degree UWA Eyepiece Set

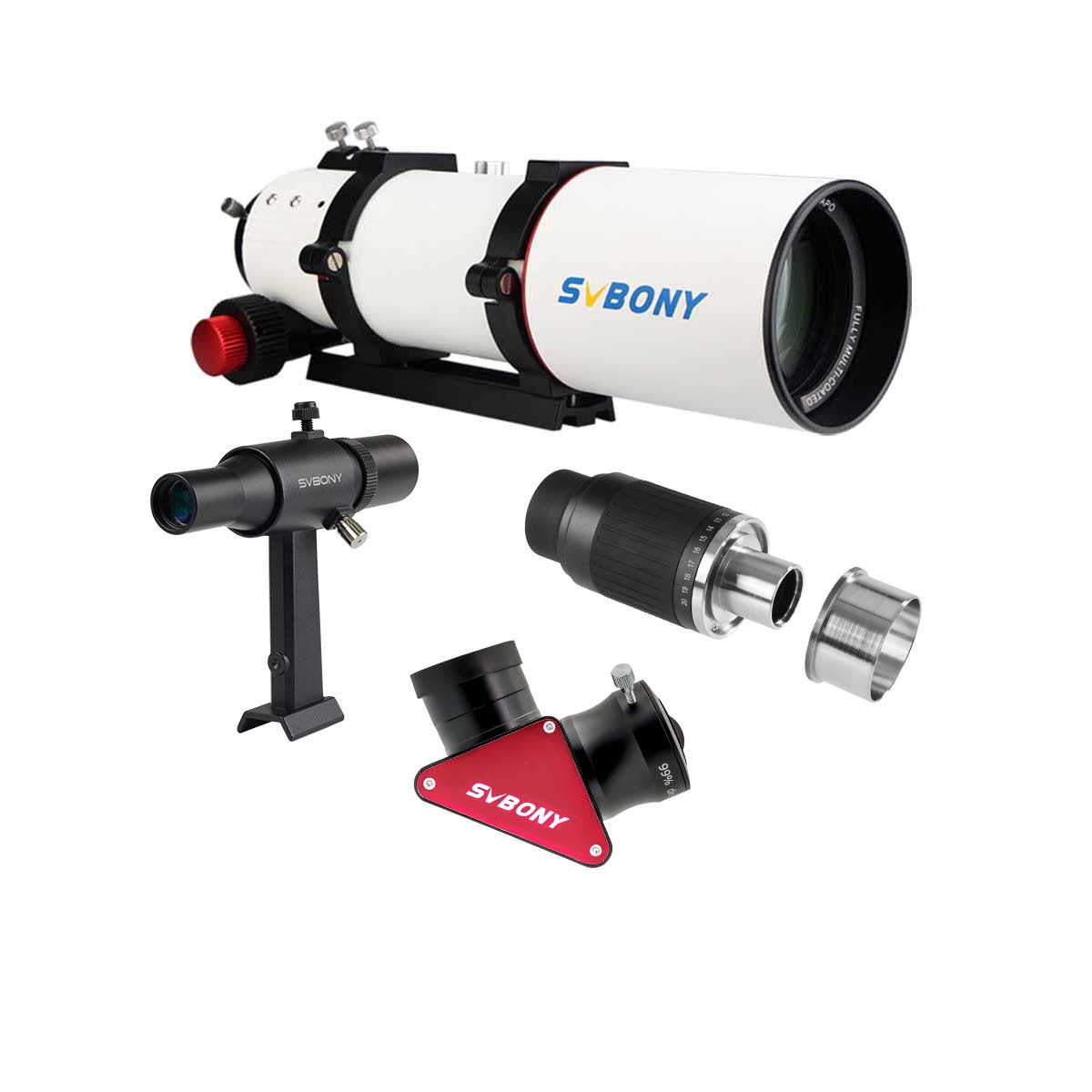

Bundle2: SV550 80APO OTA + SV182 Finder Scope + SV188P Diagonal + SV230 Zoom Eyepiece

Note: This SV550 80 OTA comes with a dedicated dovetail slot for the finderscope.

  FAST shipping, duty-free

Specifications

Brand SVBONY
Model SV550
Aperture 80mm
Focal Length 480mm
Focal Ratio f/6
ED Glass​ FPL51​
Telescope Type Refractor
Resolution 1.45 arc seconds
Coatings  SMC
Limiting stellar magnitude 11.6
Lens design  Apochromatic​
dovetail plate length 150-175mm
barrel weight 2900g
mirror Brief Size  377.8mm
Tube Outer Diameter 103mm
Net weight​ 3750g
Gross weight​ 3850g
Package size​ 440x220x210mm​
Brand  SVBONY
Model SV230
Focal Length  8mm-20mm
Apparent Field of View  57°- 72°
Barrel Size 1.25" & 2"
Coatings  Fully multi-coated
Blackened Lens Edges  Yes
Eye Relief  17-19mm
Parfocal  Yes
Rubber Eye Guard  Yes
Clickstop Click Design  Yes
Dioptrix Mounting  Support
Material of Barrel Stainless steel
Filter Threads  M28.5x0.6 & M48x0.75
Groups/Elements  6/9
Outer Diameter 60mm
Net Weight 500g/17.66oz
Model SV223
Size 2inch
Optical Design Mirror Diagonal
Inner Connection (Lens Sided) Thread M48x0.75
Outer Connection (Lens Sided) Barrel 2inch
Inner Connection (Eyepiece Sided) Clamp 2inch
Reflection Surface Dielectrically Coated
Reflectivity >99%
Image Orientation Erect image, Mirror Inverted
Optical Length appr. 109.1mm
Clamping System Clicklock
Deflection Angle 90°
Clear Aperture 43mm
Material Metal
Thickness of Mirror 11.5mm
Net Weight 573.7g/20.24oz
