Exit Pupil Explained: Matching Eyepieces to Your Telescope
Your telescope's exit pupil is the small cone of light that leaves the eyepiece and enters your eye. You find it by dividing the eyepiece's focal length by your telescope's focal ratio (f/number), or by dividing your telescope's aperture in millimeters by the magnification. Matching that number to your eye and your target is the secret to bright, sharp, comfortable views.
If you've ever swapped eyepieces and wondered why one view looked dim, another looked washed out, and a third looked "just right," the exit pupil is almost always the reason. It's one of the most useful numbers in beginner astronomy, and once you understand it you'll pick eyepieces with confidence instead of guesswork.
What is a telescope's exit pupil?
Point your telescope at a bright wall or the daytime sky, then hold your eye a few inches back from the eyepiece. You'll see a tiny, bright disk of light floating in the center. That disk is the exit pupil — the beam of light your telescope hands off to your eye. Its diameter is measured in millimeters, and it tells you how much of that light your eye can actually use.
Here's why it matters: your eye's own pupil opens and closes depending on how dark it is. In bright light it shrinks to about 2–3 mm; in true darkness it dilates to roughly 5–7 mm (younger observers reach closer to 7 mm, while the maximum shrinks with age). If the telescope's exit pupil is bigger than your eye's pupil, the extra light spills around your iris and is wasted. If it's much smaller, the image can look dim and you may start noticing floaters in your eye.
How do you calculate exit pupil?
There are two easy formulas, and they always give the same answer:
- Exit pupil (mm) = eyepiece focal length (mm) ÷ telescope focal ratio (f/number)
- Exit pupil (mm) = telescope aperture (mm) ÷ magnification
The first one is usually the fastest, because both numbers are printed right on your gear. Say you have an f/6 telescope and you drop in a 25 mm eyepiece: 25 ÷ 6 = about 4.2 mm exit pupil. Swap to a 10 mm eyepiece and you get 10 ÷ 6 = about 1.7 mm. Reach for a 5 mm eyepiece and it drops to 0.8 mm.
Notice the pattern: longer eyepieces (bigger numbers) give larger exit pupils and lower magnification, while shorter eyepieces give smaller exit pupils and higher magnification. If focal length and f/number are still fuzzy for you, our guide to telescope magnification walks through how all these numbers connect.
What exit pupil is best? A quick reference
There's no single "correct" exit pupil — the right one depends on what you're looking at and how dark your skies are. This table covers the ranges most beginners use:
| Exit pupil | Power level | Best for |
|---|---|---|
| 5–7 mm | Lowest power, widest field | Large star clusters, the Milky Way, sweeping the sky — only useful under dark skies and for younger eyes |
| 3–4 mm | Low power | Big nebulae and galaxies, rich star fields, comfortable all-around viewing |
| 2–3 mm | Medium power | The best everyday range — sharp, high-contrast views of most deep-sky objects, even in light pollution |
| 1–2 mm | High power | The Moon, brighter planets, splitting double stars |
| 0.5–1 mm | Very high power | Planetary detail on steady nights — the practical upper limit before views get dim and mushy |
A dependable rule of thumb: aim for around a 2–3 mm exit pupil as your go-to for most nights. It delivers crisp, contrasty images and works well even from a suburban backyard.
Why does a bigger exit pupil look brighter (up to a point)?
A larger exit pupil packs more light into your eye, so faint, spread-out objects like nebulae and galaxies look brighter and easier to spot. That's why low-power, wide-field eyepieces are so beloved for deep-sky observing. Binoculars work on the same principle — a 10x50 binocular has a 5 mm exit pupil (50 ÷ 10), which is a big reason they're such great, forgiving stargazing tools. You can read more about that in our beginner's guide to stargazing binoculars.
But there's a catch. Once the exit pupil grows larger than your own dilated pupil, the outer ring of light simply can't enter your eye. On a fast, large-aperture telescope, a very long eyepiece can push the exit pupil past 7 mm — at that point you're throwing light away and, in a reflector, you may even see the shadow of the secondary mirror as a dark spot in the center. That's the classic "black circle" beginners sometimes report.
Why does a tiny exit pupil make things dim and fussy?
Small exit pupils come from short, high-power eyepieces. They magnify heavily, which is great for the Moon and planets, but they also spread the same amount of light over a bigger apparent image — so everything looks fainter. Below about 0.5 mm the view gets dim and soft, your eye's tiny imperfections and floaters become distracting, and unsteady air (poor "seeing") turns fine detail to mush.
This is where the famous "maximum useful magnification" limit comes from: roughly 50x per inch of aperture (about 2x per millimeter). Push past it and you're just enlarging a blurry image. So a 4-inch (100 mm) scope tops out around 200x on a great night — which happens to be a 0.5 mm exit pupil. The two rules are really the same idea seen from different angles.
How to match eyepieces to your telescope using exit pupil
Here's a simple beginner kit-building strategy based entirely on exit pupil:
- One low-power eyepiece (roughly 4–6 mm exit pupil) for finding objects and framing wide targets. Choose the longest focal length that keeps you at or under ~6–7 mm.
- One medium-power eyepiece (about 2–3 mm exit pupil) as your everyday workhorse for galaxies, nebulae, and clusters.
- One high-power eyepiece (about 1 mm exit pupil) for the Moon, planets, and double stars on steady nights.

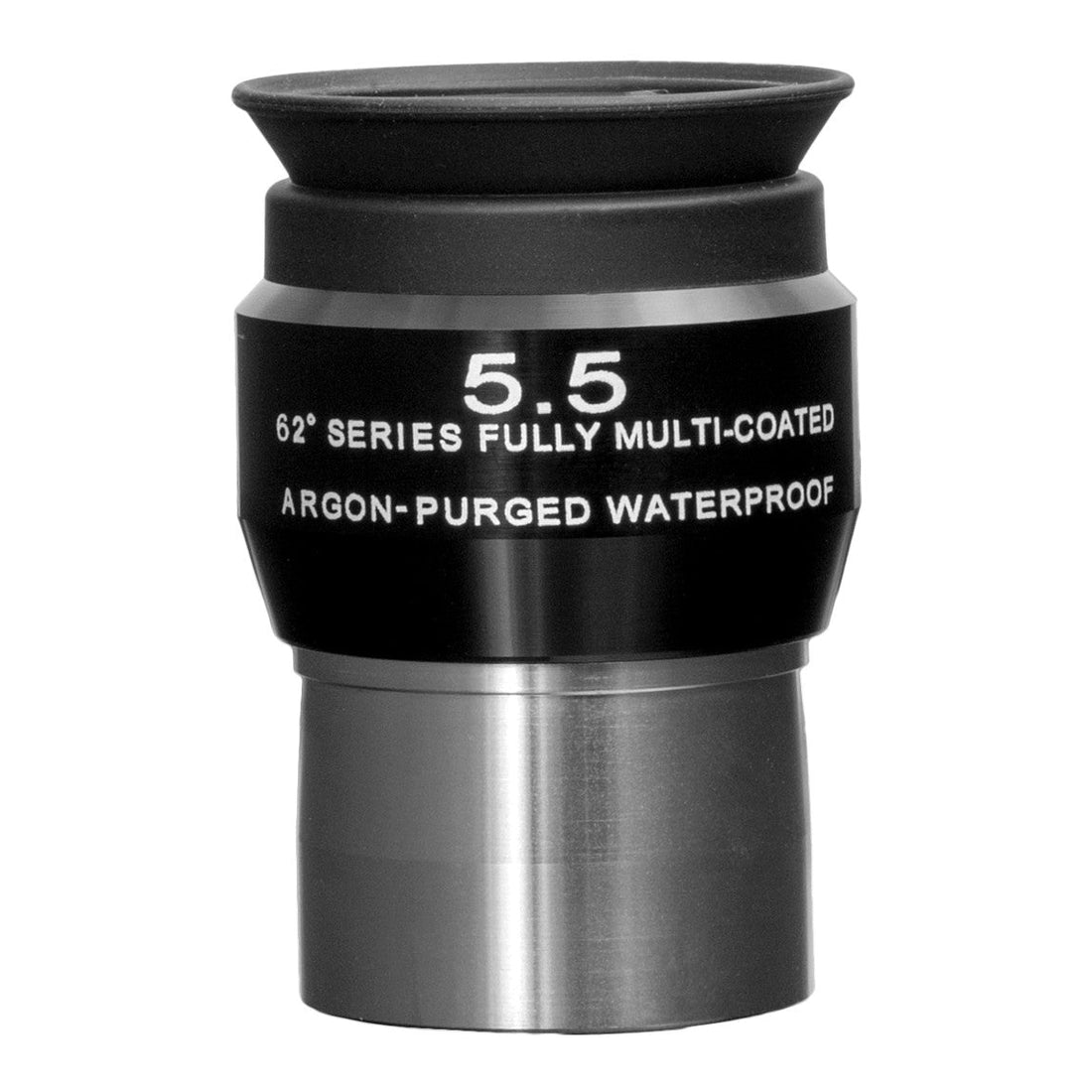

To turn those exit-pupil targets into actual eyepiece focal lengths, just multiply the exit pupil you want by your telescope's f/number. For an f/6 scope, a 3 mm exit pupil means an 18 mm eyepiece (3 × 6). A budget-friendly way to build that spread is a matched set like the Explore Scientific 62° eyepiece series, which spans short to long focal lengths so you can dial in any exit pupil you need. For planetary nights, the sharp, high-power 52° planetary and general-purpose series covers the small exit pupils, and if eye comfort is a priority the 82° long-eye-relief series keeps the view relaxed even at higher power. Browse the full lineup in our telescope eyepieces collection.
One more comfort note: exit pupil is different from eye relief (how far back your eye can sit and still see the whole field). Both affect how a view feels, but they're separate specs — and understanding field of view alongside exit pupil rounds out the picture.
Frequently asked questions
What is a good exit pupil for a beginner telescope?
For all-around use, aim for a 2–3 mm exit pupil. It gives bright, sharp, high-contrast views of most objects and holds up well even under city or suburban light pollution.
How do I calculate exit pupil?
Divide your eyepiece's focal length by your telescope's focal ratio (f/number), or divide the telescope's aperture in millimeters by the magnification. For example, a 20 mm eyepiece on an f/5 scope gives a 4 mm exit pupil.
Can the exit pupil be too large?
Yes. If it exceeds your eye's dark-adapted pupil (about 5–7 mm), the extra light spills around your iris and is wasted. On a reflector, an oversized exit pupil can also reveal the secondary mirror's shadow as a dark central spot.
Why do planets look dim at high power?
High-power eyepieces create very small exit pupils, which spreads the light thin and dims the image. Below about 0.5 mm, views also get soft and floaters become noticeable, so it's best to stay under roughly 50x per inch of aperture.
Does exit pupil matter for light-polluted skies?
It does. A smaller exit pupil (around 2–3 mm) darkens the sky background and boosts contrast, which often makes faint targets easier to see from the city than a very low-power, large-exit-pupil view would.
