Star Diagonals Explained: Correct-Image vs. Mirror
A star diagonal is a right-angle attachment that sits between your telescope and eyepiece, bending the light path 90° so you can look down into a comfortable viewing position instead of craning your neck under the scope. The two common types are mirror diagonals, which use a reflective mirror surface for the brightest, sharpest astronomy views, and correct-image (prism) diagonals, which flip the image to read the right way around for daytime and terrestrial use. For stargazing through a refractor or a Maksutov, a quality mirror diagonal is almost always the better choice.
What is a star diagonal and what does it do?
If you have ever tried to look straight through a refractor telescope pointed high overhead, you already know the problem a star diagonal solves. Without one, the eyepiece ends up near the bottom of the tube, forcing you to kneel or lie on the ground to get your eye in line. A star diagonal reflects the light coming down the tube by 90°, lifting the eyepiece to a relaxed angle so you can sit or stand and simply look down.
Star diagonals are used on telescopes where the eyepiece sits at the back of the tube: refractors and catadioptric scopes such as Maksutov-Cassegrains and Schmidt-Cassegrains. Newtonian reflectors do not use one, because their eyepiece already points out the side near the top. If you are still learning how the different designs work, our guide to refractor telescopes for beginners explains where the diagonal fits into the optical path.
Correct-image vs. mirror star diagonals: what's the difference?
The main difference comes down to how the diagonal handles the image and how much light it lets through. A mirror diagonal reflects light off a coated mirror surface. A correct-image diagonal uses a prism (often an Amici roof prism) to both bend the light and flip the view so text and landscapes appear the right way up and the right way around, exactly as your eyes see them.
| Feature | Mirror Diagonal | Correct-Image (Prism) Diagonal |
|---|---|---|
| Optical element | Coated mirror | Amici roof prism |
| Image orientation | Right-side up, but flipped left-to-right (mirror image) | Fully correct — up is up, left is left |
| Best for | Astronomy — planets, the Moon, deep-sky | Daytime, nature, spotting, casual use |
| Light throughput | Highest, especially with dielectric coatings | Slightly lower; roof prisms can add a faint spike on bright stars |
| Typical price | Budget to premium | Usually budget to mid-range |
Why does the "mirror image" not matter for stargazing?
When you look at Jupiter or the Moon through a mirror diagonal, the view is upright but reversed left-to-right, like looking in a bathroom mirror. In space there is no true "up" or "left," so this reversal makes no practical difference for observing — planets and star clusters look perfect. The reversal only becomes a nuisance if you are reading a sign across a valley or matching a terrestrial view, which is exactly when a correct-image diagonal earns its place.
What are the different types of mirror diagonal coatings?
Not all mirror diagonals are equal. The coating on the mirror determines how much of your telescope's precious light actually reaches your eye, and brighter, higher-contrast views are the whole point of upgrading.
- Standard aluminum: Reflects roughly 88–90% of light. Common on entry-level scopes and perfectly usable to start.
- Enhanced aluminum: A step up, reaching into the low-to-mid 90s for reflectivity.
- Dielectric: The premium tier, reflecting 99% or more of the light with excellent color accuracy. This is what serious observers upgrade to.

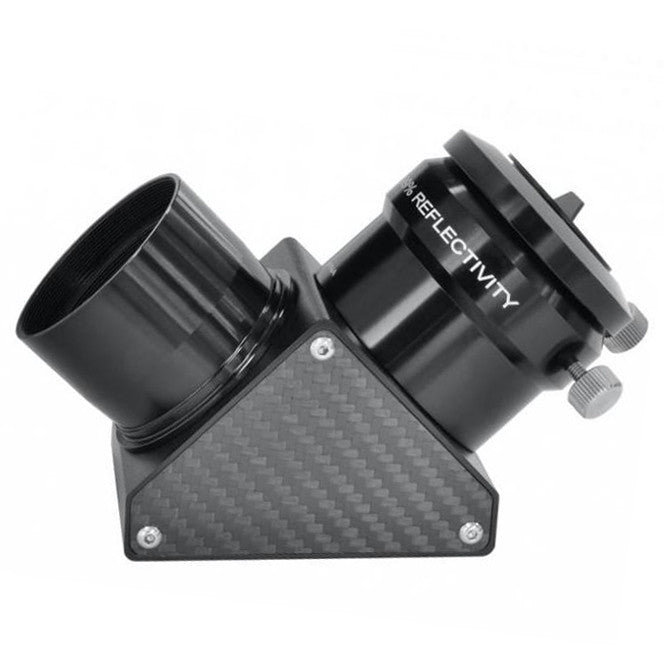

A dielectric star diagonal like the Explore Scientific 2-Inch Dielectric Mirror Diagonal squeezes noticeably more brightness and contrast out of the same telescope, which is why it is one of the most rewarding early upgrades for a refractor owner. It ships with a 1.25-inch adapter, so it works with both eyepiece sizes.
1.25-inch vs. 2-inch: which star diagonal size do I need?
Star diagonals come in two barrel sizes that match your telescope's focuser and eyepieces. A 1.25-inch diagonal is the standard for most beginner and mid-range scopes and works with 1.25-inch eyepieces. A 2-inch diagonal has a wider light path that supports big, wide-field 2-inch eyepieces for sweeping views of star fields and large nebulae — and most 2-inch models include a 1.25-inch adapter so you can use both.
If you own a large-aperture refractor, a bigger diagonal keeps the whole light cone unobstructed. The Explore Scientific 3-Inch Dielectric Mirror Diagonal is built for exactly that job on serious four-inch-and-up refractors. To be sure a new diagonal fits your setup, match it to your focuser — a scope like the Explore Scientific 102mm f/6.5 Achromat Refractor takes a standard 2-inch diagonal with room to add a 1.25-inch adapter for planetary eyepieces.
How do I choose the right star diagonal?
Choosing a diagonal comes down to three quick questions:
- What will you look at? Mostly night sky? Choose a mirror diagonal. Sharing daytime views of wildlife or landscapes too? A correct-image diagonal is friendlier.
- What size eyepieces do you use? Match the barrel size — 1.25-inch for most beginner kits, 2-inch if you want to run wide-field eyepieces. Pairing the diagonal with the right glass matters, so it helps to read up on choosing the right telescope eyepiece first.
- How much brightness do you want? If your budget allows, a dielectric coating delivers the brightest, most contrast-rich views and rarely disappoints.
You can browse diagonals alongside the rest of your kit in our telescope accessories collection.
Frequently asked questions
Do I need a star diagonal for my telescope?
For a refractor or a Maksutov/Schmidt-Cassegrain, yes — a star diagonal makes the eyepiece reachable and comfortable, and most of these scopes are sold with one. Newtonian reflectors do not use a star diagonal because their eyepiece already sits on the side of the tube.
Why is my telescope image upside down or backwards?
That is normal. A mirror star diagonal produces an upright but left-to-right reversed (mirror) image, which is completely fine for astronomy. If you need a fully correct image for daytime viewing, use a correct-image (prism) diagonal instead.
Is a dielectric star diagonal worth it?
For most observers, yes. Dielectric coatings reflect 99% or more of the light versus about 88–90% for standard aluminum, giving brighter, higher-contrast views. It is one of the best-value upgrades for a refractor and it lasts for years.
What size star diagonal should I buy — 1.25-inch or 2-inch?
Buy the size that matches your focuser and eyepieces. A 1.25-inch diagonal suits most beginner scopes; a 2-inch diagonal is worth it if you want to use wide-field 2-inch eyepieces, and it usually includes a 1.25-inch adapter so you keep both options.
Can I use a correct-image diagonal for astronomy?
You can, and it will work, but the Amici prism can put a faint diffraction spike on very bright stars and passes slightly less light than a good mirror. For pure stargazing a mirror diagonal is the better pick; choose a correct-image diagonal if you also want easy daytime and nature viewing.
