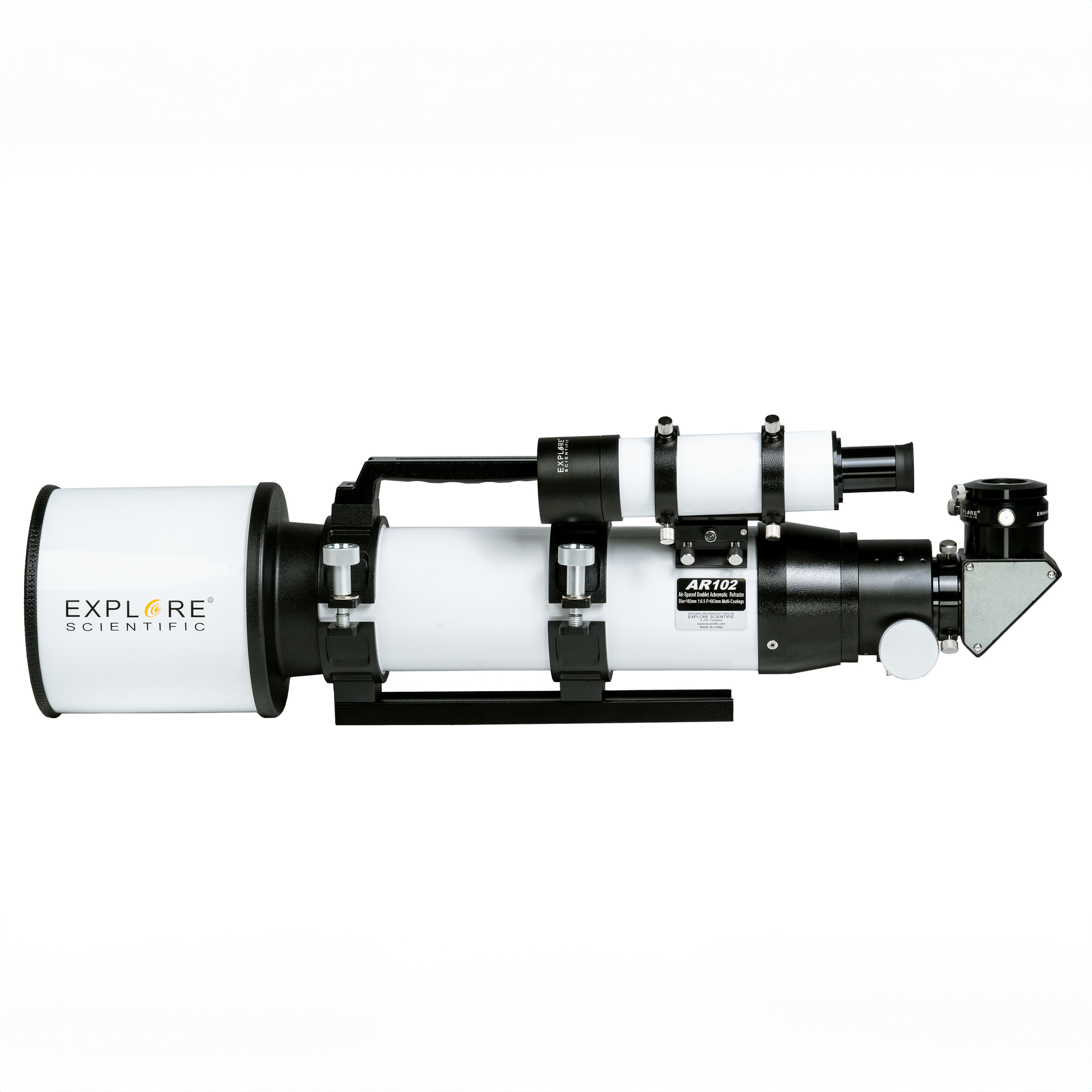

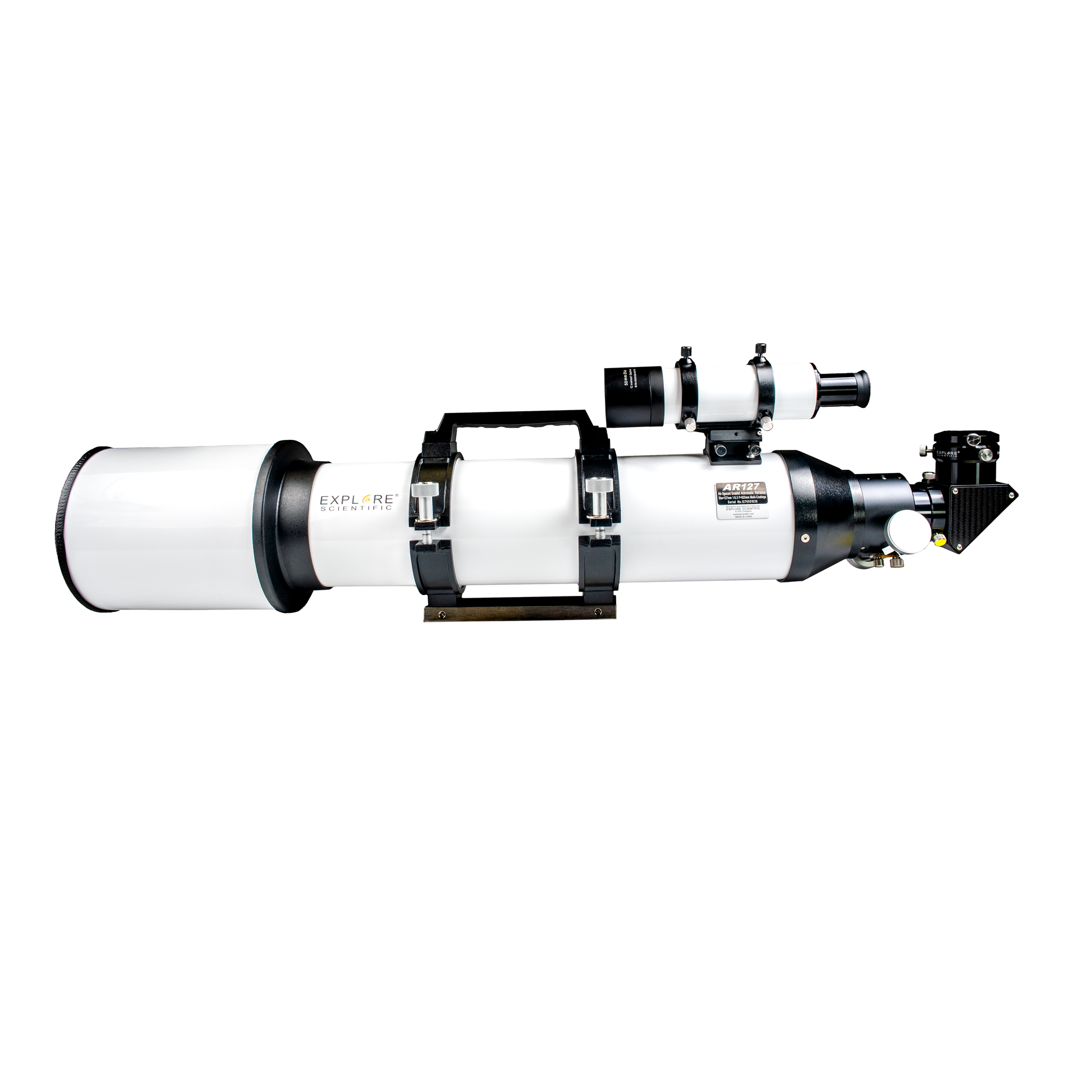

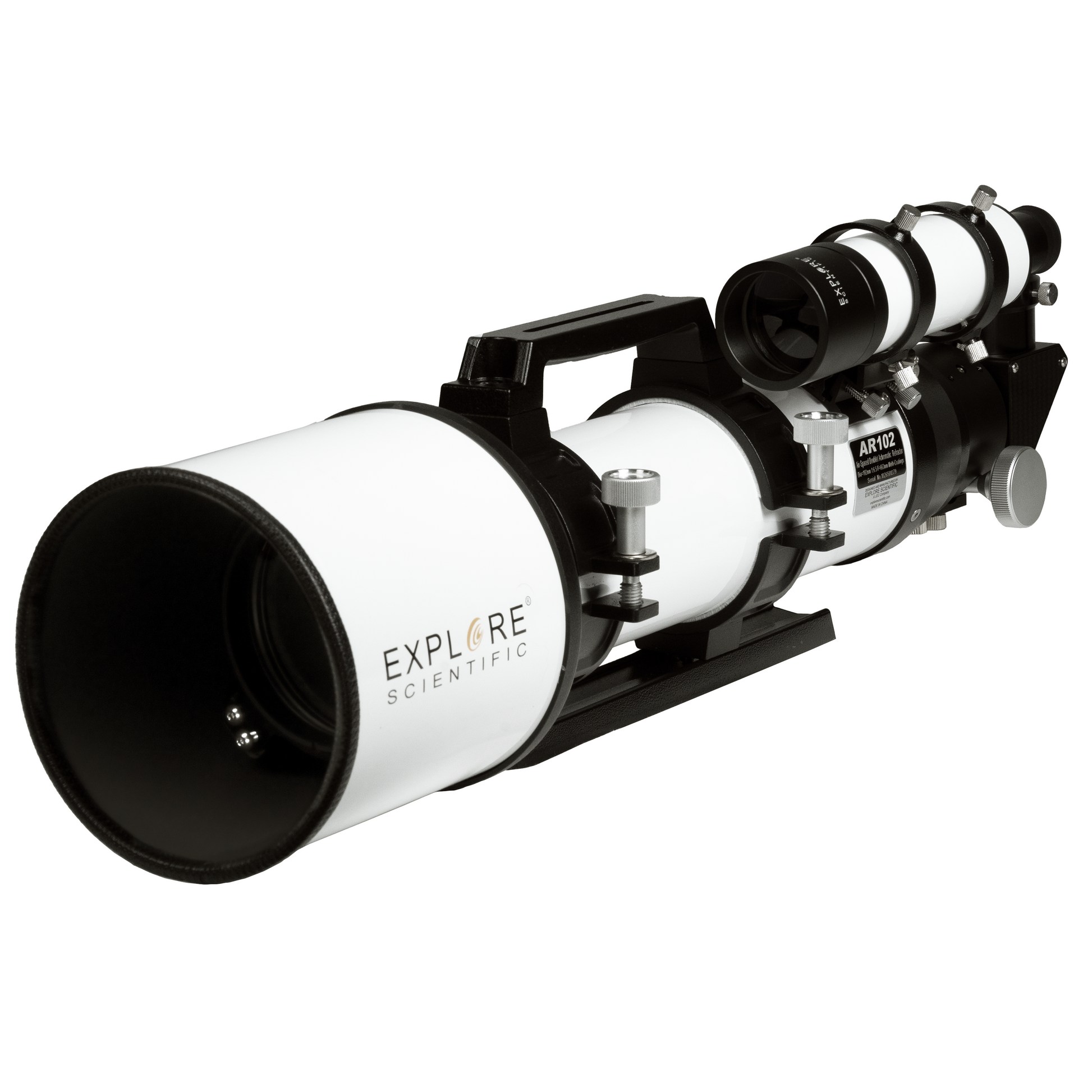

The Explore Scientific 102mm f/6.5 Achromat is a 4-inch optical tube assembly for observers and imagers who want a capable, versatile refractor on their mount of choice. Sold as an OTA with a Vixen-style dovetail plate, it pairs with any compatible alt-azimuth or equatorial mount — from a beginner EQ3 to an advanced computerized mount for astrophotography. The 660mm focal length and f/6.5 ratio sit in a useful middle ground: wide enough for open clusters and bright nebulae, and capable of sharp planetary and lunar views at moderate magnification.
Unlike complete beginner kits that lock you into a specific mount, this OTA gives you flexibility. Pair it with the Twilight Nano for simple alt-az observing. Mount it on an EQ3 for equatorial tracking. Or drop it onto an advanced imaging mount when you're ready for astrophotography. The 102mm achromat grows with your setup rather than being replaced by it — and the included finderscope, diagonal, and 2-inch focuser mean you're not hunting for accessories.
What you'll see
-
The Moon — high-contrast crater detail and terminator views in sharp refractor optics
-
Saturn's rings — clearly resolved; Cassini Division on steady nights
-
Jupiter's cloud bands and four Galilean moons
-
The Orion Nebula (M42) — glowing structure visible from suburban skies
-
Open clusters — wide-field sweeping views of the Pleiades, Hyades, and others
-
Globular clusters — partially resolving at higher magnification
What's in the box

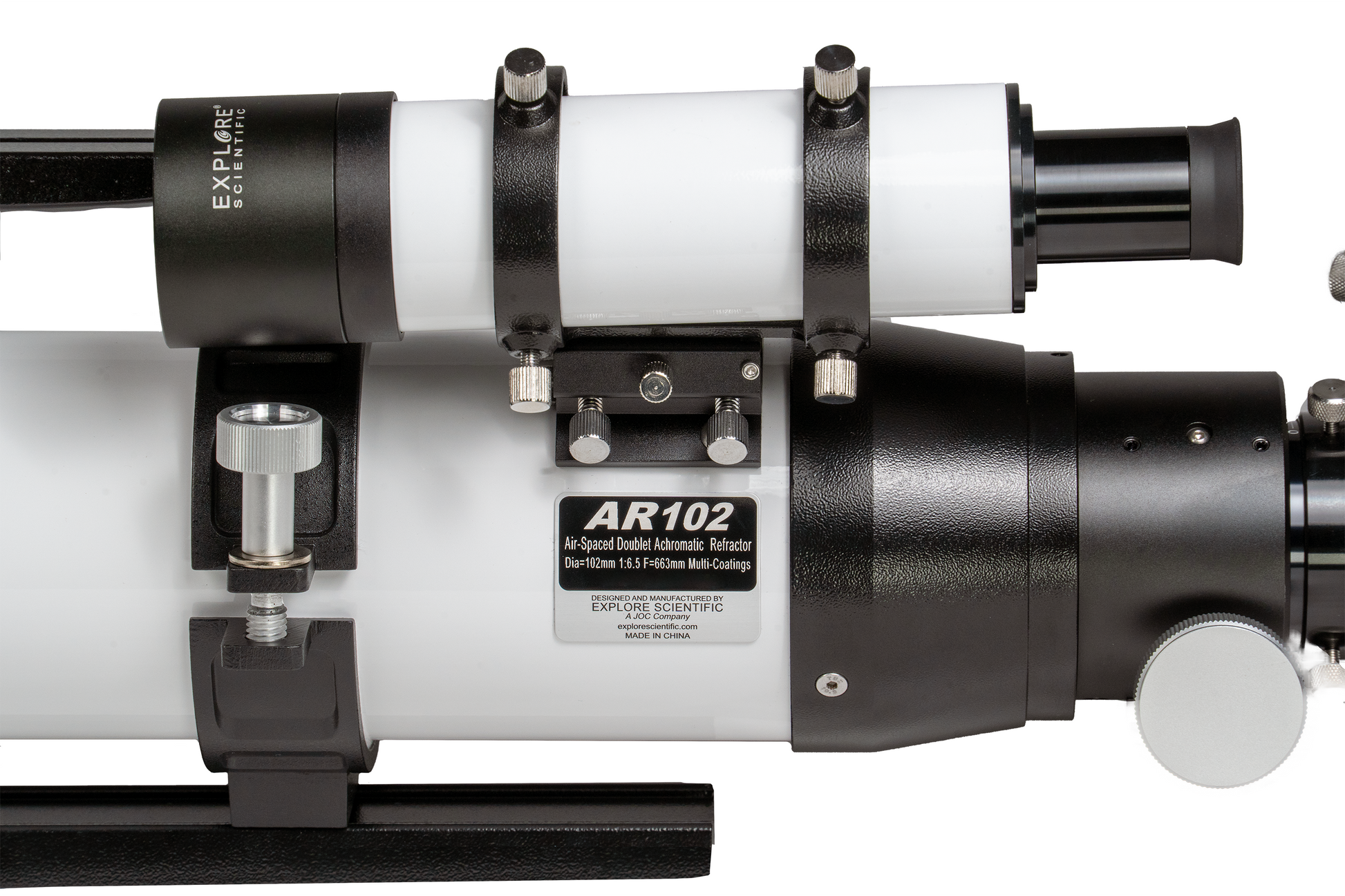

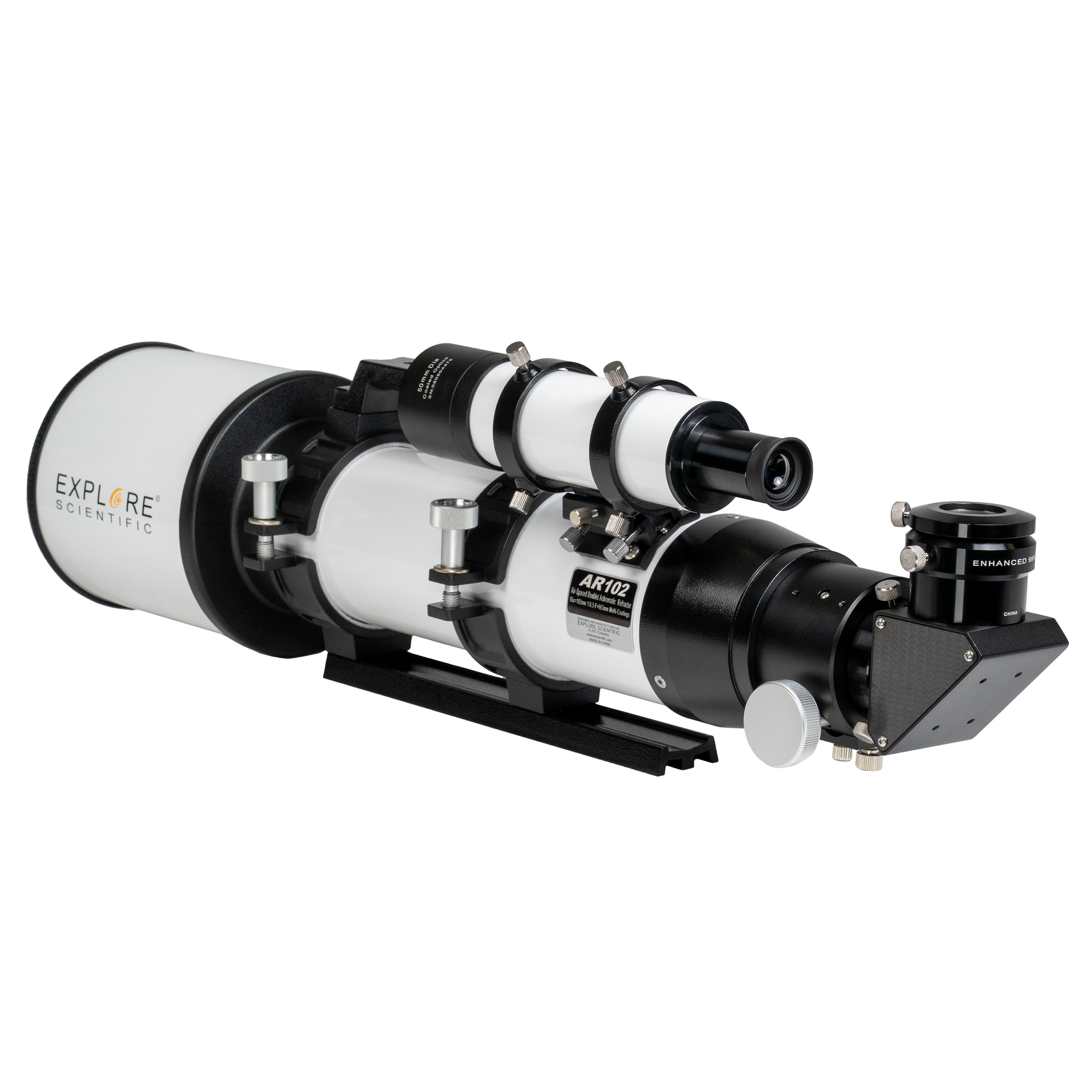

- 102mm f/6.5 achromatic doublet OTA — multi-coated optics, Vixen-style dovetail plate

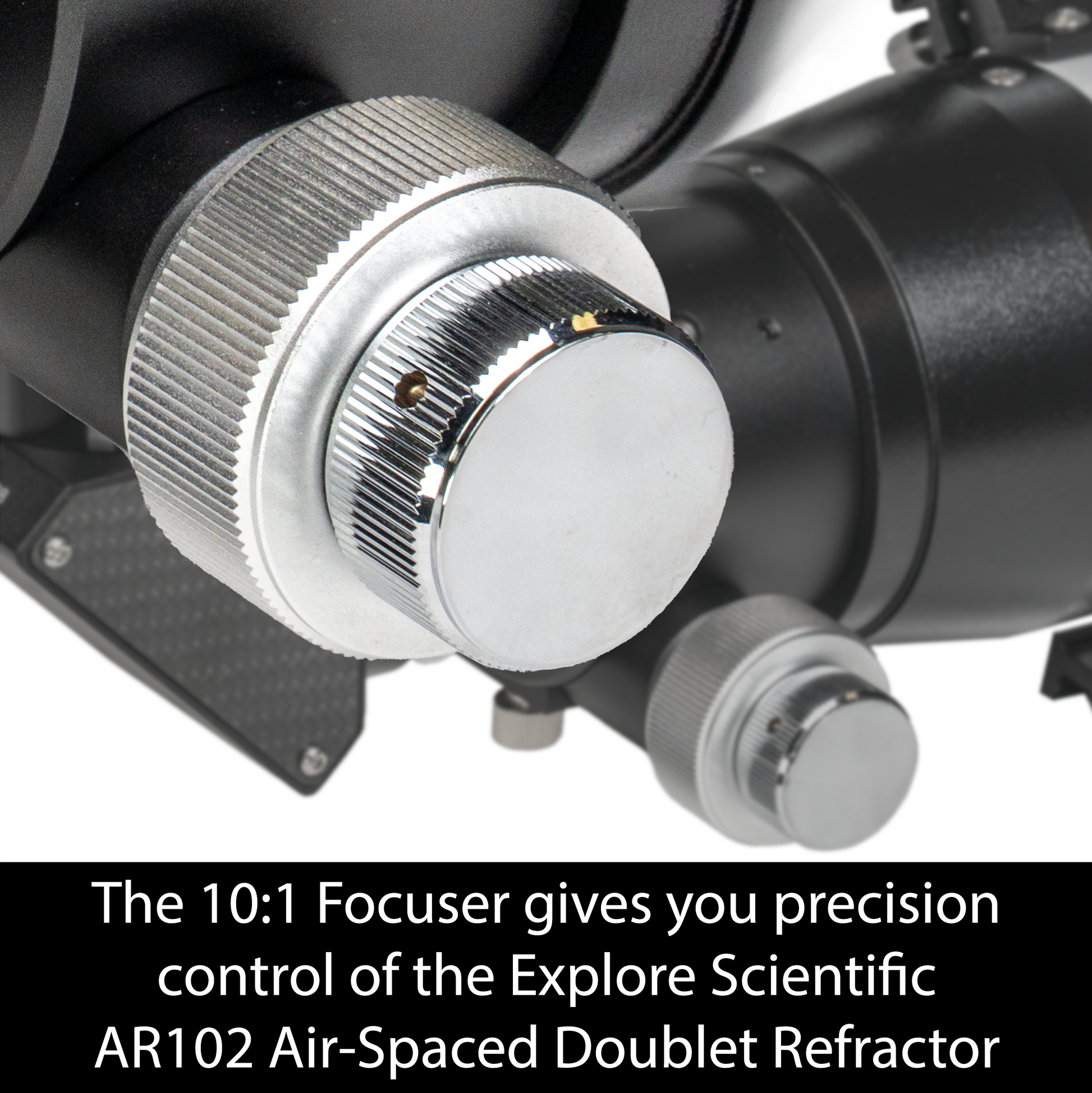

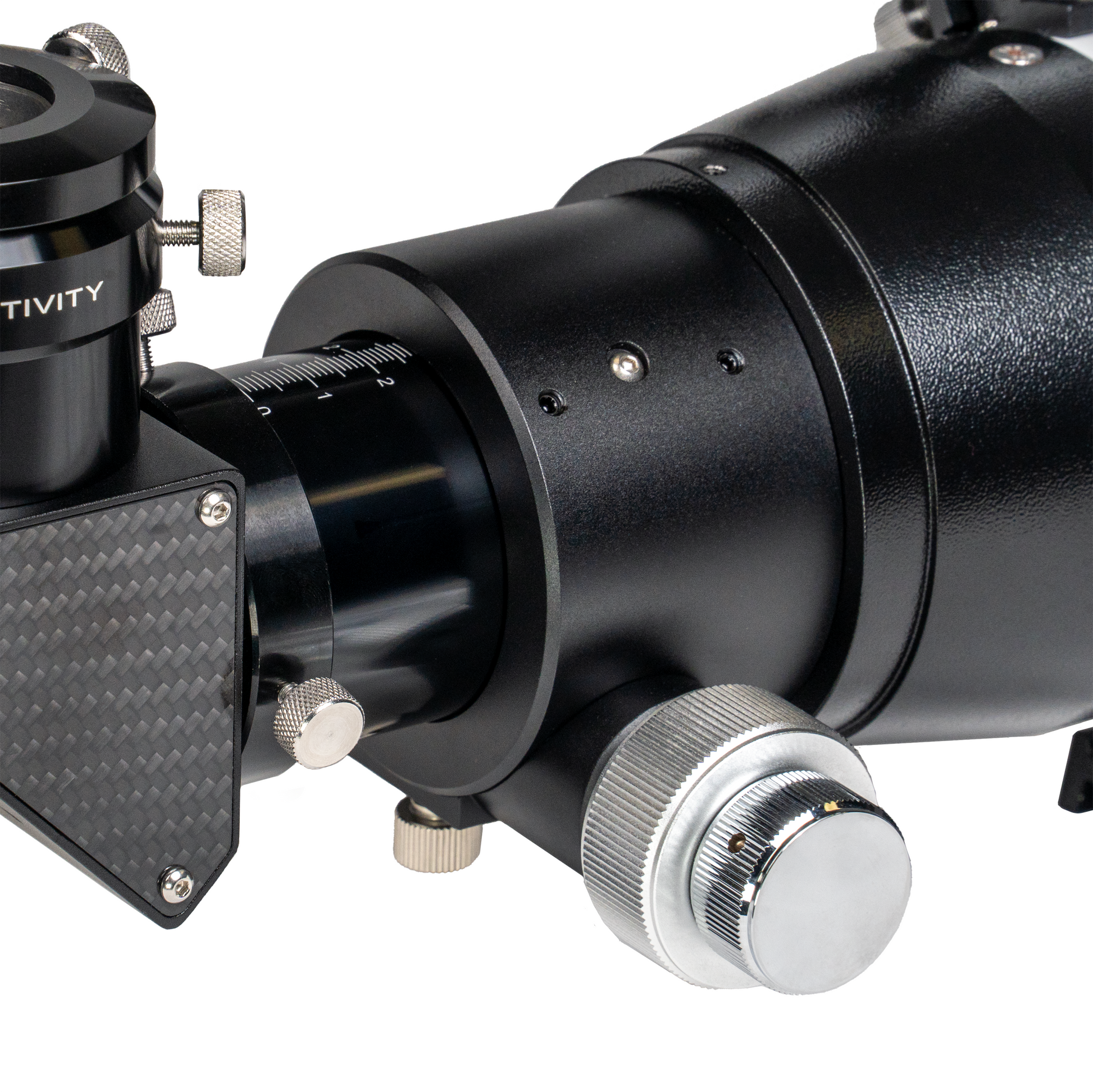

- 2-inch rack-and-pinion focuser — accepts standard 2" and 1.25" accessories
- Diagonal

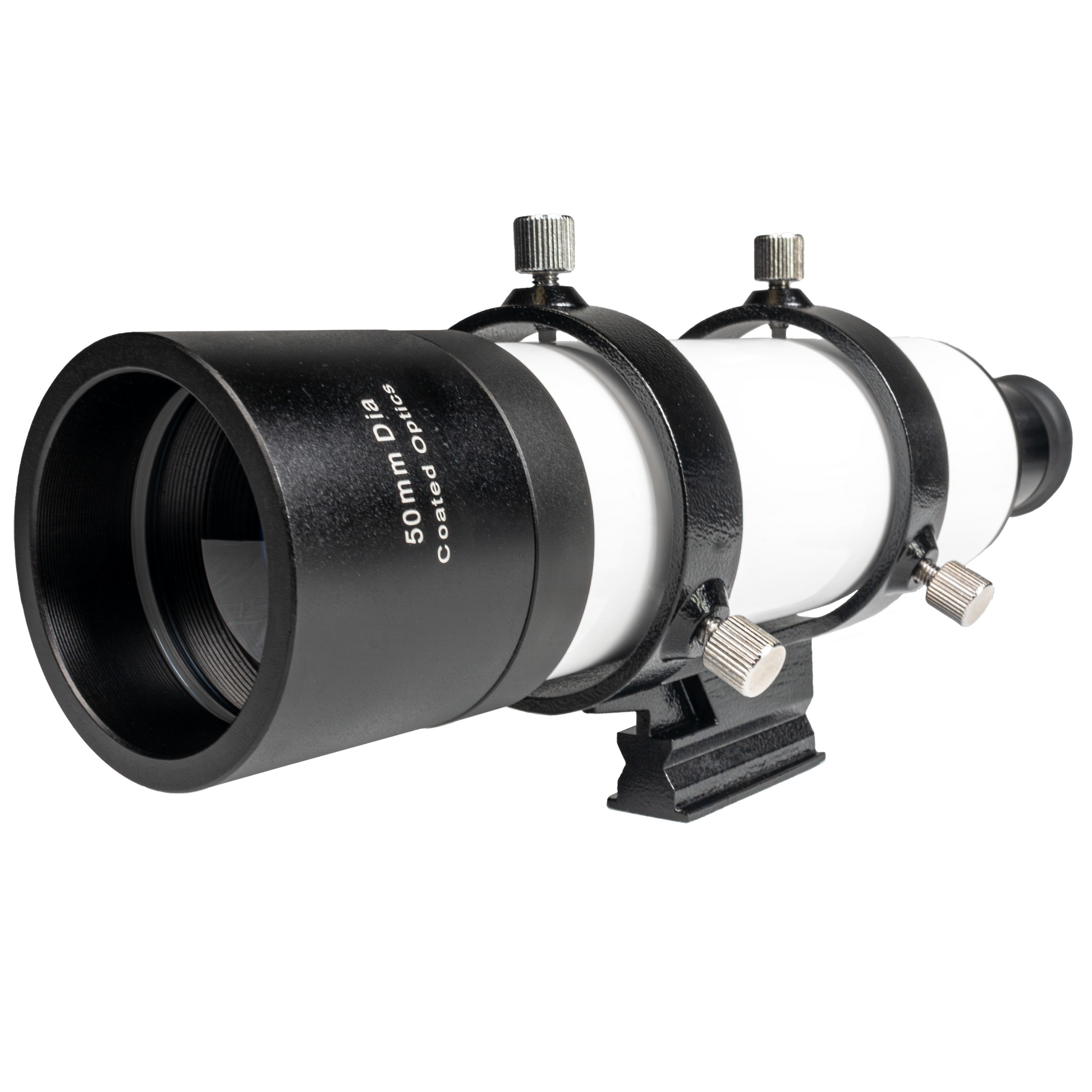

- 8x50 finderscope
- Eyepiece
| Specifications |
|---|
| Optical design |
Achromatic doublet refractor |
| Aperture |
102 mm (4 inches) |
| Focal length |
660 mm (f/6.5) |
| Focuser |
2-inch rack-and-pinion — accepts 2" and 1.25" accessories |
| Mount compatibility |
Vixen-style dovetail — compatible with most alt-az and EQ mounts |
| SKU |
DAR102065-02 |
Backed by Telescope Wolves' price match guarantee and free US shipping. Not sure which mount to pair this with? We'll match you with the right combination for your goals.
Frequently asked questions
What mount should I pair this OTA with?
For visual observing, the Explore Scientific Twilight Nano (alt-azimuth) or Twilight Nano EQ3 (equatorial) are natural companions. The EQ3 is particularly well-matched — it gives you equatorial tracking without the complexity of larger mounts. For astrophotography, an intermediate EQ mount with motor drive is the right foundation. Contact us and we'll suggest a complete kit based on your interests and budget.
What's the advantage of buying an OTA over a complete kit?
Mount flexibility. Complete kits are optimized for simplicity and matched components — they're excellent if the included mount suits your needs. An OTA purchase makes sense when you already own a compatible mount, want to pair a better mount than the kit includes, or plan to use the scope on multiple mounts. The DAR102065-02 with its Vixen dovetail is compatible with a wide range of mounts from entry to advanced.
Does an f/6.5 achromatic refractor show chromatic aberration?
Some, on very bright targets. You may see a faint blue-purple fringe around the Moon's edge or Venus — this is normal for achromatic doublets. It's less prominent than on faster (f/5 or lower) achromats and most observers barely notice it in practice. For zero chromatic aberration, an apochromatic (APO) triplet is required at a higher price. For visual observing, the f/6.5 achromat delivers excellent value.
Can this OTA be used for astrophotography?
Yes, with appropriate equipment. The 2-inch focuser accepts camera adapters and the Vixen dovetail mounts on imaging EQ mounts. The f/6.5 ratio is fast enough for reasonable exposure times. For serious astrophotography, a field flattener is recommended to correct field curvature at the edges of the image circle. As an entry point into refractor imaging at a reasonable price, it's a capable starting scope.
