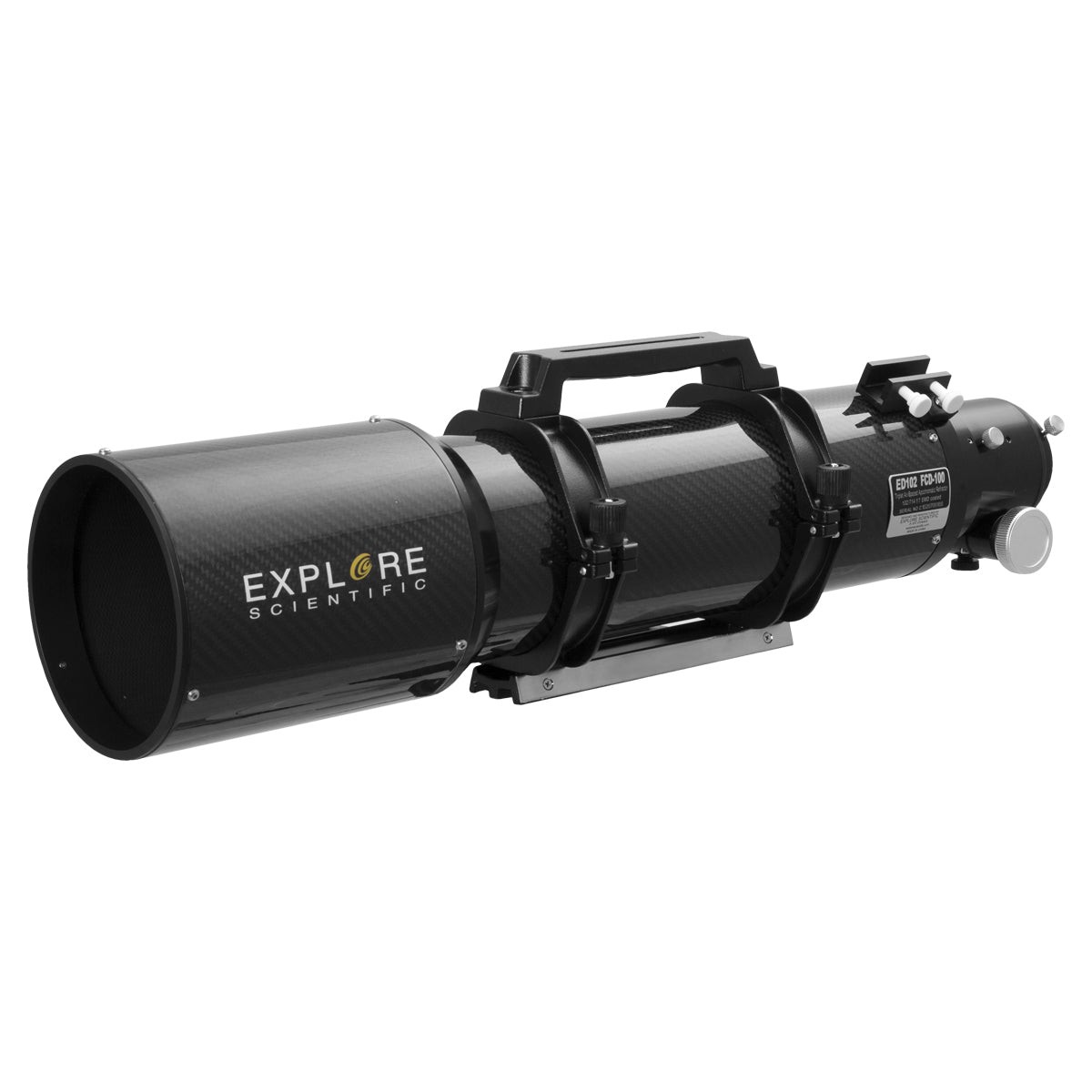

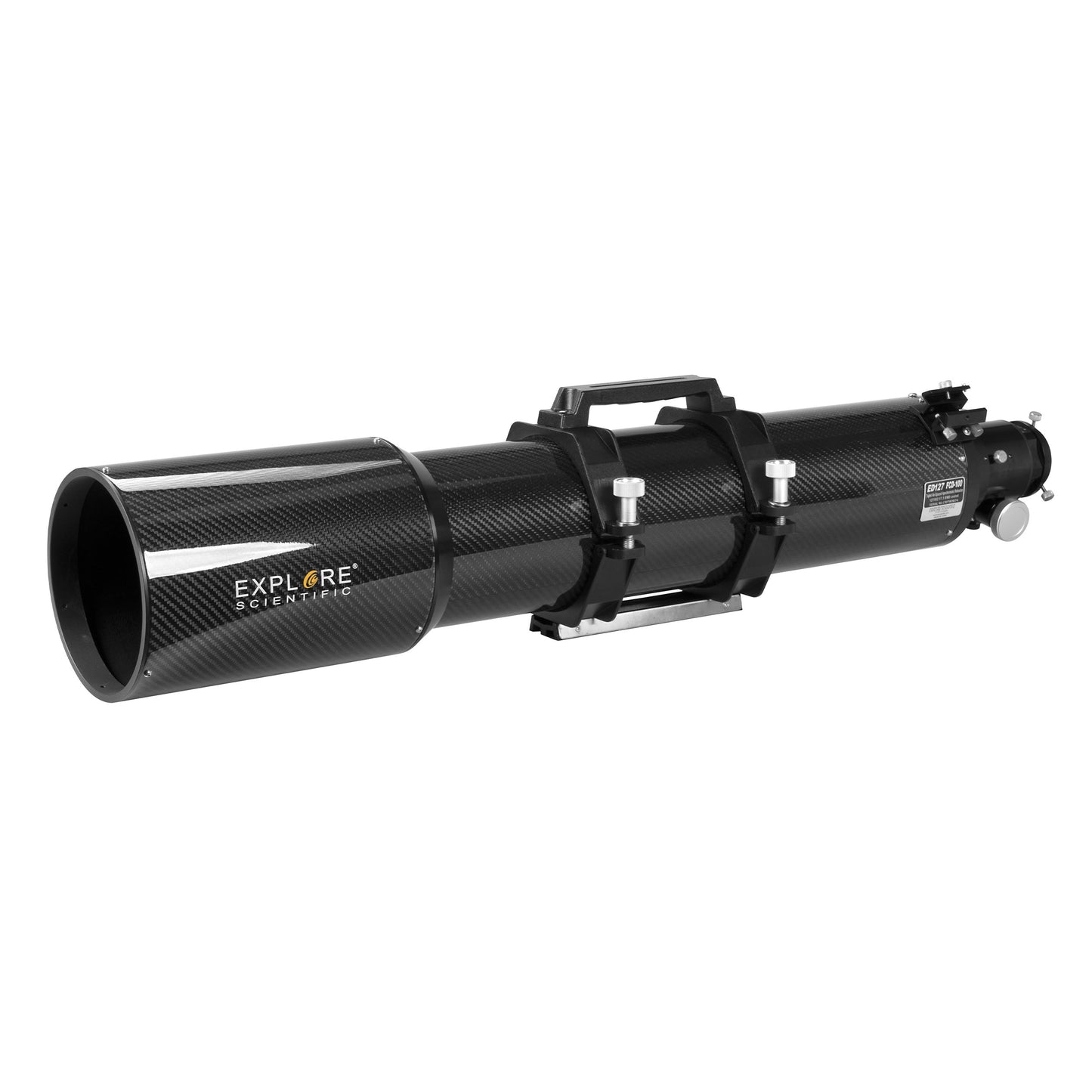

Five inches of HOYA FCD100 fluorite-grade glass in a carbon-fiber tube with a 3-inch focuser — the Explore Scientific 127mm FCD100 Carbon-Fiber APO (FCD100-10207-CF-01) is a reference-class mid-aperture refractor for observers and imagers who've outgrown achromats and want a telescope they won't need to replace. The FCD100 glass reaches apochromatic correction standards that eliminate chromatic aberration as a visual concern. The carbon-fiber tube resists thermal expansion as temperatures drop, so your focus point stays stable through a long imaging session.
Unlike standard ED doublets and triplets

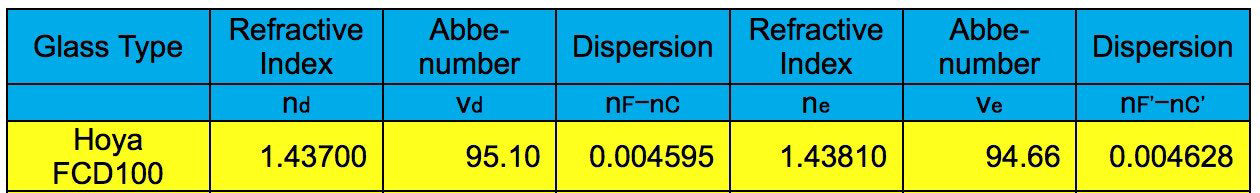

HOYA FCD100 is fluorite-grade extra-low dispersion glass — a step above standard ED materials in refractive index and Abbe number, approaching the performance of natural fluorite with better stability and reliability. In a well-designed air-spaced triplet, FCD100 brings chromatic aberration below the threshold of visual perception on all targets and well below the threshold of detectability in broadband color imaging. The carbon-fiber tube eliminates focus drift as the tube thermally contracts on cold nights — an aluminium-tube APO may need refocusing every 20–30 minutes through a temperature drop; the carbon-fiber tube often holds focus through the entire session. The 3-inch HEX focuser carries heavy camera loads — filter wheels, large sensors, off-axis guiders — without flexure.
What you'll see
127mm of apochromatic correction delivers the cleanest possible planetary views at this aperture. Jupiter's Great Red Spot, equatorial jet streams, and cloud belt subtleties are rendered without the contrast-robbing haze that chromatic aberration produces. Saturn shows Encke Minima in the A ring and atmospheric color gradients on steady nights. Double stars with tight separations and color contrasts — Rigel, Antares, Beta Cygni — resolve in natural hue without artificial halos. For imaging, round tight stars across a full-frame sensor (with an appropriate field flattener), accurate star colors, and absence of chromatic halos on bright stars define the output quality.
What's in the box

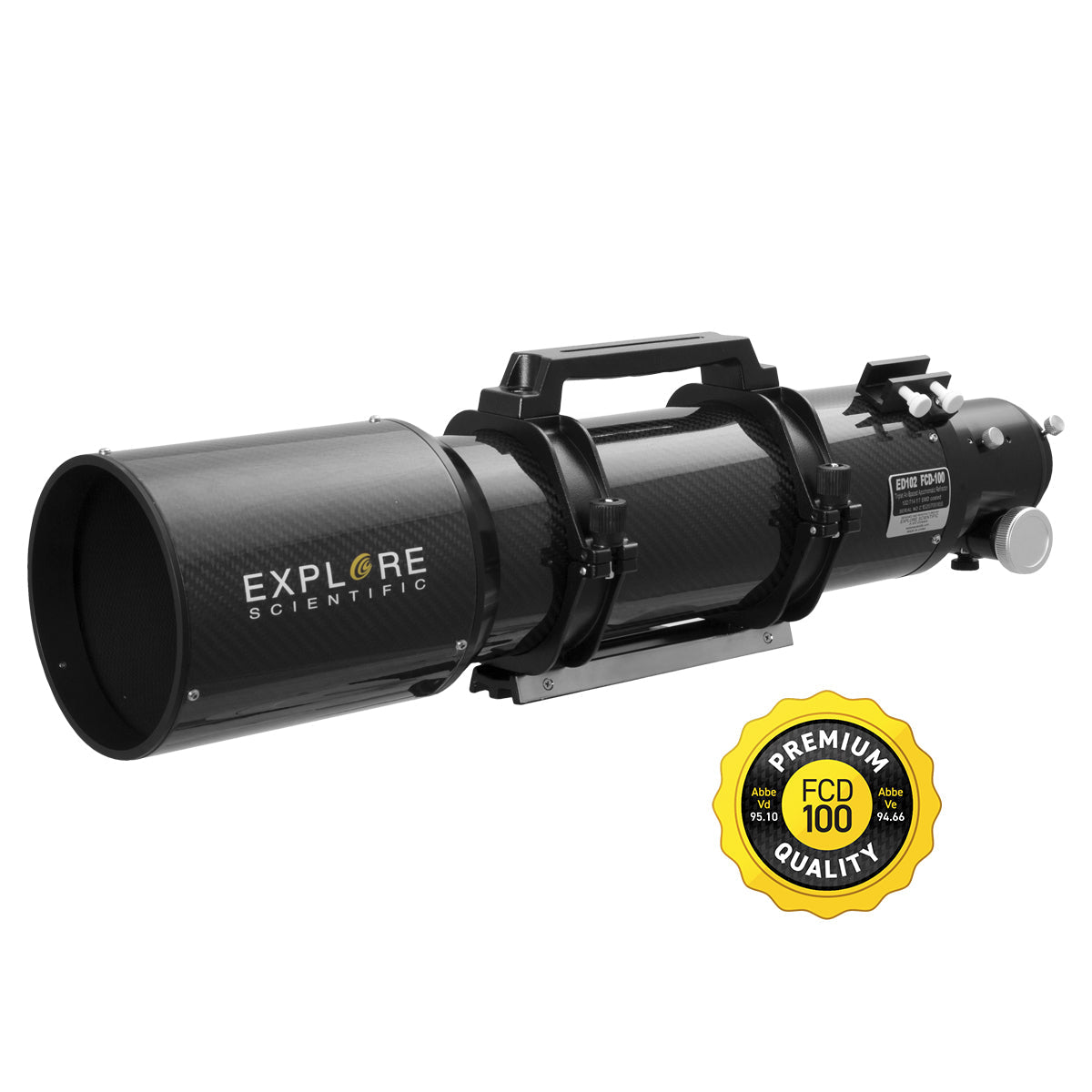

- 127mm f/7.5 FCD100 carbon-fiber triplet APO refractor OTA

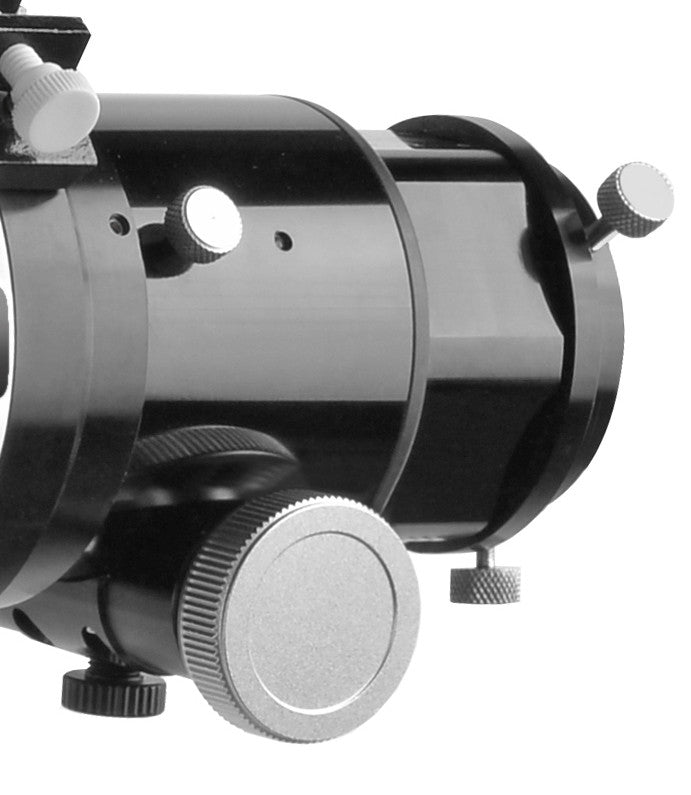

- 3-inch HEX rack-and-pinion focuser with 2-inch adapter
- Vixen-style tube rings and dovetail bar
- Dust caps (objective and focuser)
| Spec |
Value |
| SKU |
FCD100-10207-CF-01 |
| Optical Design |
FCD100 Air-Spaced Triplet APO Refractor |
| Aperture |
127mm (5 inches) |
| Focal Length |
952mm |
| Focal Ratio |
f/7.5 |
| Glass Type |
HOYA FCD100 fluorite-grade ED |
| Tube Material |
Carbon fiber |
| Focuser |
3-inch HEX rack-and-pinion with 2-inch adapter |
| Included |
OTA only — mount not included |
Price Match, Shipping & Questions
We price-match any authorized Canadian or US retailer. Ships free to the contiguous US. Questions? Email us at support@telescopewolves.com or visit our contact page.
Frequently Asked Questions
What's the practical difference between FCD100 and standard ED glass?
FCD100 is a higher-Abbe-number glass than most ED materials — it bends different wavelengths of light more uniformly, which is the root of chromatic aberration control. In a triplet design with FCD100, the residual secondary spectrum (the remaining color after the triplet's correction) is so small it's effectively invisible under all normal observing conditions. Standard ED doublets perform well but leave a small residual — FCD100 triplets essentially eliminate it.
Why does carbon fiber matter for astrophotography?
As night temperatures drop, aluminium tubes contract, shifting the focal plane and requiring refocusing. A common imaging session might require refocusing every 20–30 minutes. Carbon fiber has dramatically lower thermal expansion — the focal point stays stable for hours, which is critical during automated imaging runs where you can't manually refocus mid-sequence.
What mount is appropriate for this OTA?
127mm at roughly 7 lbs requires a mount with 20+ lbs payload capacity for comfortable imaging margin. Sky-Watcher EQ6-R, iOptron CEM60, or Celestron CGX are natural pairings. For visual use, a quality alt-az like the Twilight II handles it comfortably. The 3-inch focuser and Vixen-dovetail compatibility mean the OTA integrates cleanly with all major mount systems.
Is a field flattener included?
No — the OTA ships without a field flattener. For imaging on sensors larger than Micro Four Thirds, a quality field flattener matched to the 952mm focal length is recommended for sharp corner stars. For visual use and planetary imaging, no flattener is needed.
