Vixen SD Reducer HD Kit (ES37245)

Vixen

Regular price
Price: $504.99 USD
Regular price
List Price:
Sale price
Price: $504.99 USD
Shipping calculated at checkout.

Availability: Pre-order

Estimated Arrival: Between Jan 04 and Jan 18. United States

Ships within 4-7 days

  • Description
  • Shipping & Returns
  • Price Match
  • Warranty
  • Reviews
  • Product Q&A
  • Manuals

Description

The Vixen SD Reducer HD Kit is a premium optical upgrade designed for astrophotography with Vixen’s SD-series refractor telescopes (SD81S, SD103S, SD115S). This kit combines a high-precision field flattener and a focal reducer to deliver edge-to-edge sharpness while widening the field of view for stunning deep-sky imaging. It is engineered to support full-frame cameras and maximize image quality across the entire frame.


Key Features

  • Flattener + Reducer system: Includes both optical elements for correcting field curvature and shortening focal length.

  • Full-frame coverage: Produces a wide 44 mm image circle, ideal for full-frame DSLR and mirrorless astrophotography.

  • 0.79× focal reduction: Widens your field of view and speeds up exposures for deep-sky imaging.

  • High-transmission AS coatings: Reduces reflections and ghosting while maximizing light throughput.

  • Flexible use: The flattener can be used alone for native focal length imaging, or combined with the reducer for wide-field astrophotography.

  • Designed for SD refractors: Optimized for SD81S, SD103S and SD115S optical tubes.


Specifications

Component Details
Optical Construction Flattener: 2 elements in 1 group; Reducer HD: 2 elements in 2 groups
Focal Reduction 0.79×
Effective F-Ratio (example) f/7.7 → f/6.1 when reduced
Image Circle 44 mm (full-frame compatible)
Coating AS anti-reflection coating
Telescope Compatibility SD81S, SD103S, SD115S

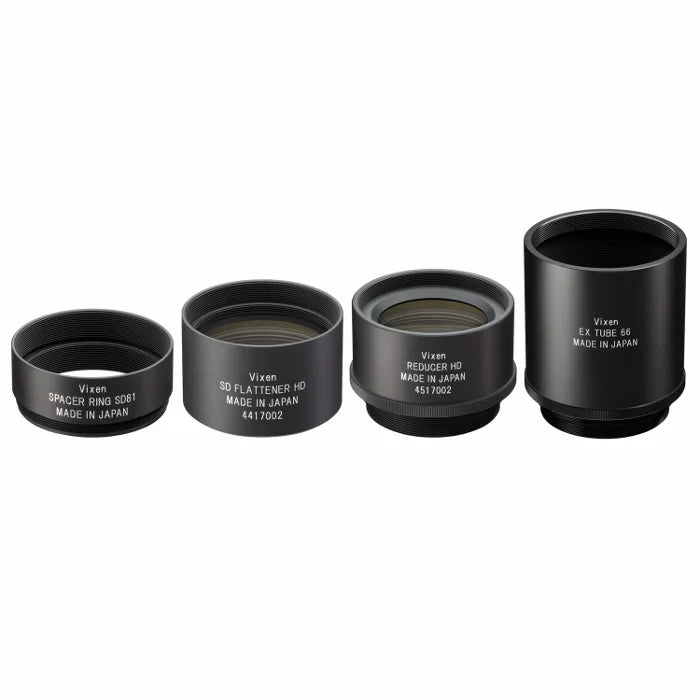

Included in Kit Flattener lens, Reducer HD lens, Spacer Ring SD81, EX Tube 66
Use Case Prime-focus deep-sky astrophotography

Why Choose the SD Reducer HD Kit

This kit lets astrophotographers transform their Vixen SD refractors into high-performance wide-field imaging systems. The combination of focal reduction and precise field flattening ensures crisp, sharp stars even at the edges of full-frame sensors. It’s ideal for capturing nebulae, large galaxies, star fields, and Milky Way regions with outstanding clarity and efficiency.
