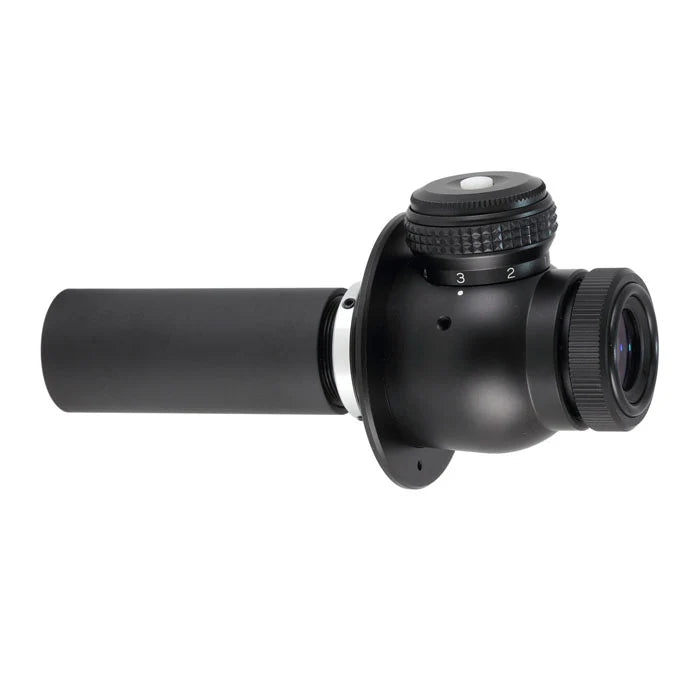

Vixen PF-L II Polar Alignment Scope – Easy & Accurate Polar Alignment for Equatorial Mounts & Star Trackers (ES35532)

Accurate Polar Alignment for AP, SX, AXJ, and AXD Mounts

The PF-L II Polar Alignment Scope inserts into your mount's polar axis and uses a 3-star alignment method to get you to within 3 arc minutes of true polar alignment — precise enough for confident long-exposure astrophotography. Align three reference stars (Polaris, δ UMi, and 51 Cep in the northern hemisphere) with their positions on the illuminated reticle, and you're done. The reticle includes Big Dipper and Cassiopeia constellation patterns as guides, so no hour-angle calculations are needed in the dark.

Compatible with AP, SX, AXJ, and AXD series mounts, as well as the POLARIE star tracker.

Who This Is For

• AP, SX, AXJ, or AXD mount owners wanting a simple, accurate polar alignment tool
• POLARIE users wanting better alignment accuracy for long exposures

Key Features

• 5× magnification, 20mm aperture, 10° field of view for easy star identification
• Illuminated 3-star alignment reticle, precession-corrected until 2040
• Northern hemisphere stars: Polaris, δ UMi, 51 Cep — Southern hemisphere: Σ Oct, τ Oct, χ Oct
• Dark-field red illuminator with 8 brightness levels and auto-off to preserve night vision
• Improved edge-of-field star clarity for easier reference star acquisition
• CR2032 battery included

Specs
