How to Collimate a Reflector Telescope: A Beginner’s Guide

Introduction

Reflector telescopes use precisely aligned mirrors to focus light from celestial objects. This mirror alignment, called collimation, is critical for sharp, high-contrast images. While it may seem intimidating to beginners, collimation is a straightforward process that becomes second nature with practice.

This guide walks you through collimating your reflector telescope step-by-step. Whether you own a compact reflector or a larger Dobsonian, mastering this skill will unlock your telescope's full potential.

1. Why Collimation Matters

Misaligned mirrors cause several problems that degrade your viewing experience:

• Blurry images – Scattered light prevents sharp focus
• Distorted stars – Stars appear elongated instead of crisp points
• Reduced contrast – Planetary and lunar details appear washed out
• Poor high-magnification performance – Errors become dramatic at 200x+
• Wasted aperture – Your telescope can't use its light-gathering power efficiently

Mirrors shift during shipping, transport, and temperature changes. Even factory-aligned telescopes often need adjustment. The good news? Collimation takes just 5-10 minutes and dramatically improves image quality.

2. Gather Your Tools

You'll need:

• Collimation cap – Usually included with your telescope; a plastic cap with a central viewing hole
• Allen wrenches or screwdrivers – For adjusting mirror cell screws (check your manual for sizes)
• Bright star (optional) – For final verification via star test

3. Align the Secondary Mirror

Start with the secondary mirror (the small diagonal mirror near the front of the tube).

Steps:

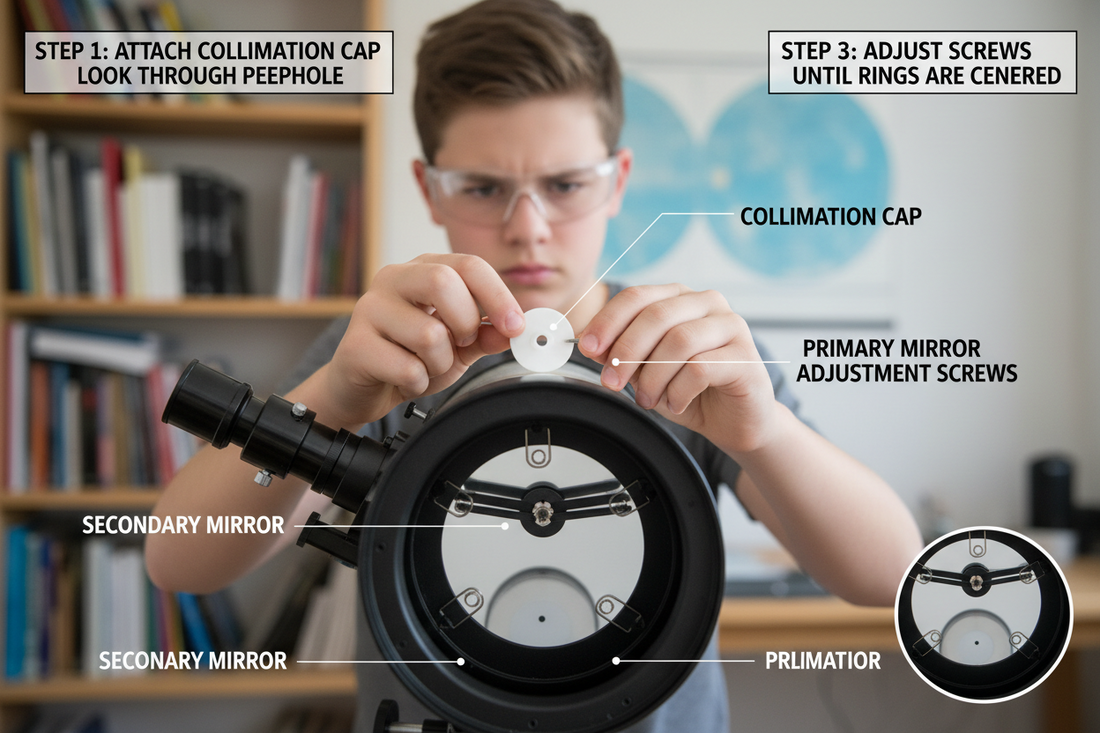

1. Remove the eyepiece and insert your collimation cap
2. Look through the viewing hole – You'll see concentric circles: the tube opening, secondary mirror, primary mirror reflection, and your eye
3. Center the secondary mirror – If off-center, loosen the center bolt slightly and slide the mirror holder until centered, then retighten
4. Adjust the tilt – Use the 3-4 adjustment screws around the secondary holder to center the primary mirror's reflection within the secondary mirror. Make small adjustments (1/4 turn at a time)

4. Align the Primary Mirror

With the secondary aligned, adjust the primary mirror (the large mirror at the tube's base).

Steps:

1. Locate adjustment screws – On the back of the telescope, find 3-4 collimation screws around the mirror cell perimeter. Loosen any locking screws first
2. View through the collimation tool – You should see all the mirror reflections and a center spot on the primary mirror
3. Center the reflections – Adjust the collimation screws to center the primary mirror's center spot within all the reflections. Tightening a screw tilts the mirror toward it; loosening tilts away
4. Fine-tune – Make increasingly smaller adjustments until you see perfect concentric circles
5. Lock the mirror – Gently tighten locking screws if your telescope has them

5. Perform a Star Test

Daytime collimation gets you 90-95% there. For final verification, use a real star:

Steps:

1. Choose a bright star – Select a 2nd or 3rd magnitude star high in the sky (Polaris, Vega, Arcturus)
2. Use high magnification – Insert a short focal length eyepiece or add a Barlow lens
3. Defocus the star – Rack the focuser in and out to see expanding diffraction rings
4. Check symmetry – Properly collimated telescopes show perfectly circular, concentric rings that look identical on both sides of focus
5. Fine-tune if needed – If rings are asymmetric or elongated, make small primary mirror adjustments and recheck

6. When to Collimate

Check collimation:

• After transport – Always check after moving your telescope
• Before important sessions – Verify alignment before observing special events
• When images seem soft – Poor collimation often masquerades as bad seeing
• After temperature changes – Significant temperature swings affect alignment
• Periodically – Check every few months as preventive maintenance

Frequency by Telescope Type:

• Dobsonians – Check before each session (frequently moved)
• Equatorial Newtonians – Check after transport and monthly
• Truss-tube designs – Collimate every time you assemble

7. Troubleshooting Tips

Can't see reflections clearly? Collimate in bright light or use a flashlight. Cheshire eyepieces have built-in illumination.

Screws too tight or loose? Apply gentle, steady pressure. Never force screws. Add spring tension if mirrors wobble.

Collimation changes with telescope angle? The mirror may be shifting in its cell—check mirror clips and cell support.

Can't achieve perfection? Getting within 95% is excellent. If you have concentric circles and symmetric star test rings, you're done.

Conclusion

Collimating your reflector telescope is essential for sharp, detailed images. By understanding why alignment matters, using the right tools, following the step-by-step process for both mirrors, verifying with a star test, and making collimation part of your routine, you'll ensure optimal performance every session.

With practice, collimation becomes a quick 5-minute task that transforms your telescope from producing blurry images to revealing stunning planetary detail, crisp lunar craters, and faint deep-sky objects.

Telescope Wolves offers beginner-friendly reflector telescopes, precision accessories, and essential collimation tools to help you achieve peak performance from your telescope.

Clear skies and sharp views!
