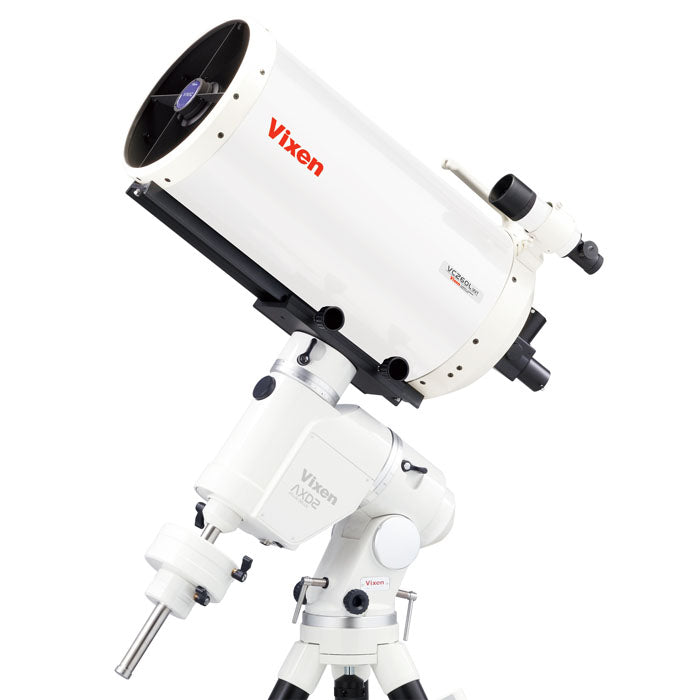

Vixen AXD2‑VMC260L(WT) – 260 mm Catadioptric Telescope + AXD2 Equatorial Mount System

Vixen

Regular price
Price: $18,456.99 USD
Regular price
List Price:
Sale price
Price: $18,456.99 USD
Shipping calculated at checkout.

Availability: Pre-order

Estimated Arrival: Between Jan 04 and Jan 18. United States

Ships within 4-7 days

  • Description
  • Shipping & Returns
  • Price Match
  • Warranty
  • Reviews
  • Product Q&A
  • Manuals

Description

Experience the power and precision of deep‑sky and planetary observation with the AXD2‑VMC260L(WT) — a premium telescope system that combines a large 260 mm aperture optical tube with the robust and accurate AXD2 equatorial mount. This setup is designed for demanding observers and astrophotographers who require high light‑gathering power, sharp resolution, and stable tracking for long‑exposure imaging.

The 260 mm VMC260L(WT) optical tube delivers exceptional performance with a 3000 mm focal length (F/11.5), enabling high‑magnification viewing of planets, nebulae, galaxies, and other deep‑space objects. Thanks to its main‑mirror‑focus design, the eyepiece position stays fixed — a major advantage when using heavy cameras or imaging gear. The large aperture and high light‑gathering capacity reveal faint details of deep‑sky objects with clarity.

Mounted on the AXD2 Go‑To equatorial mount with precision motorized tracking and computerized navigation, the system offers smooth, accurate tracking and easy automatic object acquisition. The included tripod provides a stable, solid base for both visual observing and astrophotography. Whether you’re capturing galaxies, nebulae, or fine planetary detail — this system gives you the optics, mechanics, and stability you need in a complete package.


Features

  • Large 260 mm diameter catadioptric optical tube — high light‑gathering power for deep‑sky objects and detailed planetary views

  • Long focal length: 3000 mm (F/11.5) — ideal for high‑magnification observation and imaging

  • Main‑mirror focus design — keeps the eyepiece/camera position fixed for stable imaging even with heavy equipment attached

  • Precision equatorial Go-To mount (AXD2) with high tracking accuracy — enables smooth tracking and automatic object acquisition

  • Robust tripod with thick 55 mm aluminum legs and wide base — ensures maximum stability under load

  • Complete package — includes optical tube, mount, tripod, counterweights, and dovetail mount block for ready-to-use setup


Specifications

Component Specification
Optical Tube (VMC260L(WT)) 260 mm effective aperture, precision spherical mirror, multi‑coated
Focal length: 3,000 mm (F/11.5)
Resolving power / Limiting magnitude: 0.45″ / 13.8 mag; Light‑gathering power: ~1,380× unaided eye
Tube dimensions & weight: Ø304 mm × 680 mm (720 mm incl. focuser handle); total 12.1 kg (net 10.0 kg)
Focuser / Eyepiece adapter: Supports 60 mm / 42 mm T‑ring threads; 50.8 mm & 31.7 mm push‑fit (with flip‑mirror diagonal)
Mount (AXD2) Equatorial Go‑To mount with 50 mm super‑alloy RA/Dec axes, 21 bearings, brass worm & wheel drive
Counterweight bar: 25 mm diameter, retractable; includes 1.5 kg and 7 kg counterweights
Tripod (AXD‑TR102) Aluminum legs with 55 mm pipe diameter; adjustable leg length 760–1,018 mm; tripod height 690–915 mm; support radius 440–570 mm; tripod weight 10.3 kg
Included Accessories Optical tube, mount, tripod, counterweights, dovetail‑mount block, finder scope (7×50 mm with illuminated reticle)
Use Cases Visual astronomy (planets, nebulae, galaxies), deep‑sky observation, long‑exposure astrophotography (prime‑focus, eyepiece/afocal)
