Vixen AXJ‑AX103S 103 mm Triplet SD Apochromatic Telescope Kit (ES36956‑SO)

Vixen

Regular price
Price: $12,410.99 USD
Regular price
List Price:
Sale price
Price: $12,410.99 USD
Shipping calculated at checkout.

Availability: Pre-order

Estimated Arrival: Between Jan 04 and Jan 18. United States

Ships within 4-7 days

  • Description
  • Shipping & Returns
  • Price Match
  • Warranty
  • Reviews
  • Product Q&A
  • Manuals

Description

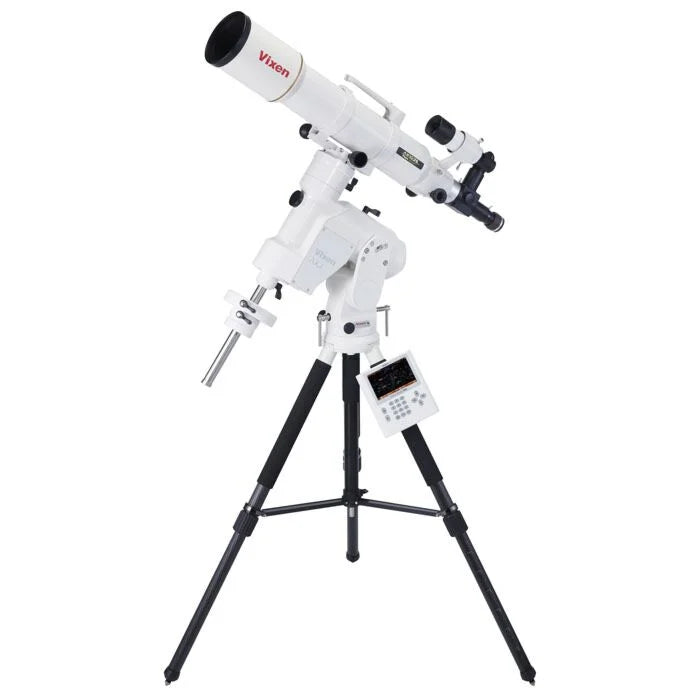

Manufactured by industry-leading optics brand Vixen, the AXJ‑AX103S is a premium, all-in-one telescope kit designed for serious astronomers and astrophotographers. It combines a high-performance SD apochromatic refractor, a stable equatorial mount, and a lightweight but sturdy tripod — everything you need to explore the night sky with clarity and precision.


Key Features

  • High-performance SD Triplet Apochromat (Photovisual Grade): 103 mm triplet SD objective with multi-coating delivers superb color correction and high contrast, producing crisp, sharp images with minimal chromatic aberration.

  • Field-Corrected Optics for Imaging: Built-in field collector lens ensures sharp stellar images across the field — excellent for prime-focus and wide-field astrophotography.

  • Precision Multicoating: Optical elements feature high-transmission coatings, achieving up to 99.5% transmission (400–700 nm), yielding bright, high-contrast views.

  • Versatile Imaging & Observation: Supports prime focus, eyepiece projection, and afocal imaging; with optional accessories, it’s capable of serious astrophotography.

  • Powerful Light Gathering & Resolution: Aperture 103 mm and focal length 825 mm (F/8.0) — yielding resolving power of ~1.13″ and limiting magnitude ~11.8, with ~217× light-gathering power vs unaided eye.

  • Complete Mount & Tripod Kit: Includes AXJ equatorial mount (capable of handling up to 22 kg payload) with built-in automatic periodic error correction (V-PEC), carbon-fiber tripod (lightweight yet rigid), and counterweights — ready out of the box.

  • User-friendly Go-To Navigation: STAR BOOK TEN computerized Go-To controller with full-color LCD, night-vision mode, and intuitive star chart interface for easy object targeting — ideal for both beginners and advanced users.


Specifications

Component Specification
Objective Lens 103 mm triplet SD apochromatic, multicoated
Focal Length / Ratio 825 mm (F/8.0)
Resolving Power / Limiting Magnitude ~1.13 arcsec / ~11.8 mag
Light Gathering Power ~217× unaided eye
Optical Tube Size / Weight 115 mm diameter × 762 mm length (retractable to 670 mm), 6.4 kg (net 4.6 kg)
Finder Scope 7×50 mm with illuminated reticle, 7° real field of view
Focuser / Visual Back 60 mm & 42 mm T-ring thread; 50.8 mm & 31.7 mm push fit with flip mirror
Eyepieces (included) SLV 20 mm (41×, 73′ FoV), SLV 5 mm (165×, 18′ FoV)
Tripod Two-section carbon fiber legs (adjustable 545–900 mm), 3.4 kg
Mount Payload Capacity Up to 22 kg — supports larger OTA or camera rigs
Imaging Support Prime focus, eyepiece projection, afocal imaging (camera adapter optional)

Included in the Kit:

  • AX103S optical tube assembly

  • AXJ equatorial mount with automatic V-PEC correction

  • Carbon-fiber tripod

  • Counterweights and dovetail mounting block


Why Choose the AXJ‑AX103S?

The Vixen AXJ‑AX103S is an all-in-one solution for enthusiasts who want premium optics, reliable tracking, and immediate out-of-the-box usability. Its 103 mm SD apochromatic lens offers sharp, high-contrast planetary and deep-sky views and is well-suited for astrophotography, while the included mount and tripod make it stable and portable. Perfect for those building a serious observing setup without needing to assemble multiple components.
