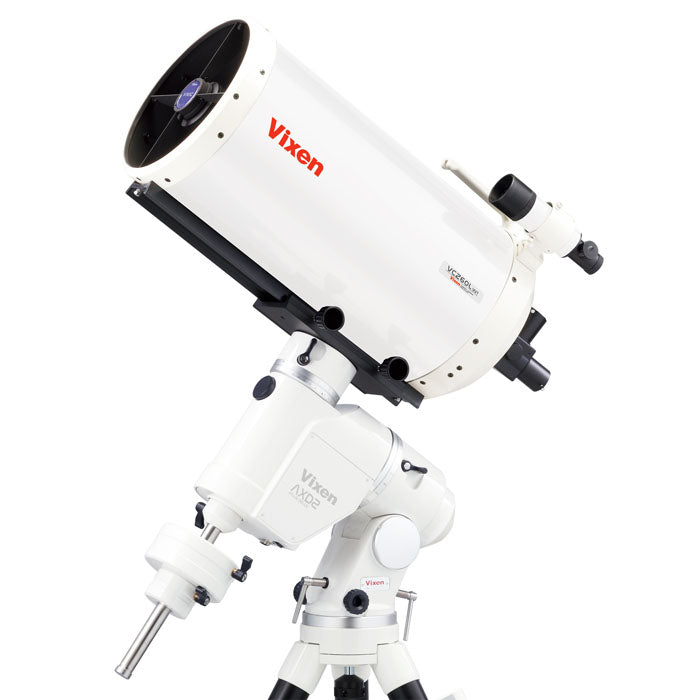

Vixen AXD2-VMC260L(WT)-P – 260 mm Catadioptric Telescope + AXD2 Go-To Equatorial Mount System

The AXD2-VMC260L(WT)-P is a complete high-performance telescope system designed for advanced observers and serious astrophotographers. Featuring a large 260 mm catadioptric optical tube paired with the precision AXD2 Go-To equatorial mount, this system delivers exceptional light-gathering ability, sharp resolution, and stable long-exposure tracking.

The VMC260L(WT) optical tube offers a powerful 3000 mm focal length (F/11.5), making it ideal for high-magnification planetary work and detailed deep-sky imaging. Its main-mirror-focusing design ensures a fixed eyepiece and camera position, maintaining stability even when heavy imaging equipment is attached.

The AXD2 mount provides smooth, highly accurate tracking and full computerized Go-To navigation, allowing you to locate and follow celestial targets effortlessly. The included pillar base offers observatory-grade stability, making the system suitable for rooftop, backyard observatory, or fixed-site astronomy setups.

This package is engineered for performance, precision, and durability — a complete solution for ambitious visual observers and astrophotographers seeking professional-level results.

Features

• Large 260 mm catadioptric optical tube for high light-gathering capability

• 3000 mm focal length (F/11.5) for high-magnification planetary and deep-sky imaging

• Main-mirror-focusing system keeps eyepiece/camera position fixed for stable imaging

• AXD2 Go-To equatorial mount with high precision tracking and smooth micro-drive system

• High payload capacity suitable for heavy astrophotography setups

• Observatory-grade pillar base for maximum stability

• Complete system: optical tube, AXD2 mount, pillar base, dovetail, counterweights, and hardware

Specifications

Optical Tube (VMC260L(WT))

• Aperture: 260 mm

• Focal length: 3000 mm

• F-ratio: F/11.5

• Resolving power: 0.45″

• Limiting magnitude: 13.8

• Light-gathering power: approx. 1380×

• Dimensions: Ø304 mm × 680 mm (720 mm with focuser handle)

• Weight: 12.1 kg total (10.0 kg net)

• Eyepiece adapters: 60 mm & 42 mm T-thread / 50.8 mm & 31.7 mm push-fit

Mount (AXD2)

• Equatorial Go-To mount

• 50 mm RA/Dec axes made from high-strength materials

• 21 precision bearings

• Worm-and-wheel micro-drive system

• Counterweight shaft: 25 mm, retractable

• Included counterweights: 1.5 kg ×1, 7 kg ×1

Pillar Base

• Observatory-grade metal pillar base

• Provides maximum stability for heavy astrophotography setups

Included Items

• Optical tube

• AXD2 equatorial mount

• Pillar base

• Dovetail mounting block

• Counterweights

• Required hardware
